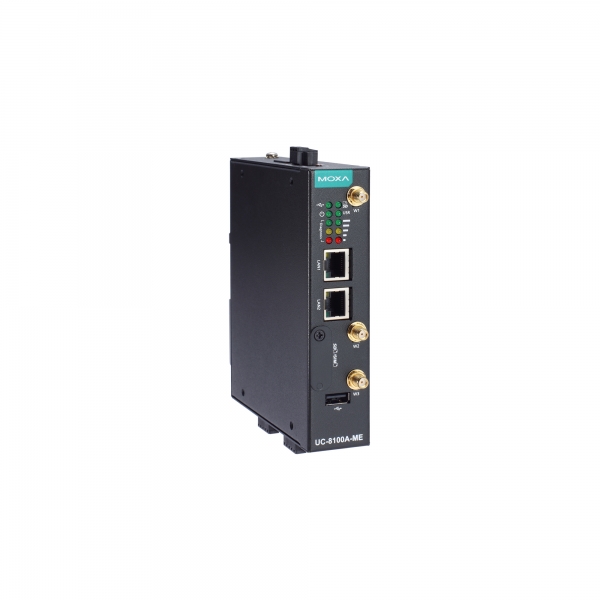

UC-8112A-ME-T-LX
MOXA
SKU: 08654600
RISC-based communication-centric computer plateform with ARMv7 Cortex-A8 1000MHz CPU, 1GB DDR3 SDRAM, 8GB eMMC flash, 2 Ethernet, COM, SD socket, USB Port, Debian 9, Kernel 4.4, Metal Case, EU LTE module installed, -40...+70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Assembly
Fixed on Board
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
USB 2.0
1
Drive interfaces
SD Slots
1
Extension Slots
Mini-PCIe/Mini Card
1
SIM Card slots
1, Mini-SIM
Antenna characteristics
Cellular interfaces
2G
Additional Functions
GPS
GPS
Connectors
Connectors
Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
6 W
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
33 mm
Height
141 mm
Depth
125.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Explosion safety
IECEx, ATEX Zone 2 Group II, UL/cUL Class I Division 2
Safety
EN 62368-1 (LVD), UL 62368-1
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.55 kg
Gross Weight
1 kg
