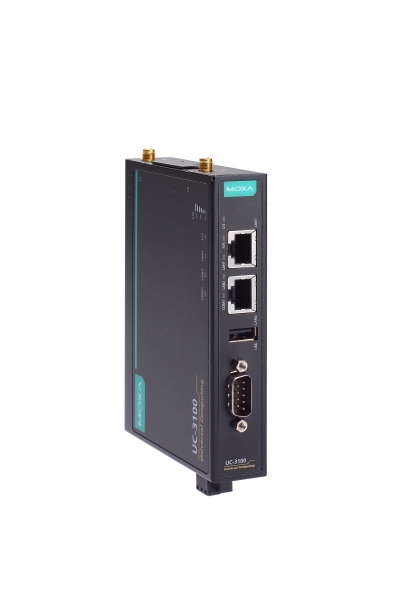

UC-3101-T-EU-LX
MOXA
SKU: 66498300
RISC-based LTE cat.1 computer for EU, 1 GHz CPU, 512MB RAM, 4GB eMMC, 2 Ethernet, 1 serial port, 1 USB port and -30 to 70C operating temperature
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Assembly
Fixed on Board
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
1
USB 2.0
1
Extension Slots
SIM Card slots
2
Connectors
Connectors
Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
9 V
Power Consumption
6 W
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
26 mm
Height
128.5 mm
Depth
89.1 mm
Operating Conditions
Operating Temperature
-30..70 °C
Standards and Certifications
Explosion safety
IECEx, ATEX Zone 2 Group II, UL/cUL Class I Division 2
Safety
UL 60950-1
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.2 kg
Gross Weight
1 kg
Construction
