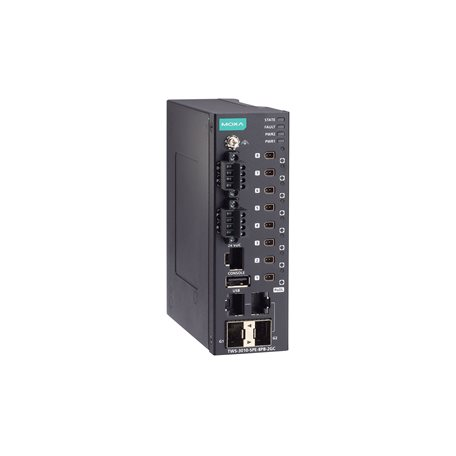

TWS-3010-SPE-8PB-2GC-T

TWS-3010-SPE-8PB-2GC-T

MOXA
SKU: 80290500
Managed Ethernet Switches, IP30, 2x10/100/1000Base-TX or 100/1000BaseSFP, 8x10Base-T1L SPE Ports, 1xDI, 1xUSB, 20..30 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
10/100 Mbit/s
8
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
8000
Max. Number of VLANs
4094
IGMP Groups
2048
Supported Protocols
Industrial Protocols
Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, LLDP, Syslog, Telnet, NTP, SNTP, GVRP, RMON, TFTP, IGMPv1/v2/v3, DHCP Option 66/67/82, RARP
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
1
System Power Input
Input Voltage DC
20..30 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
133 mm
Depth
135 mm
Height
111 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
UL 61010-2-201, EN 62368-1 (LVD)
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.83 kg
Gross Weight
1.3 kg
Ethernet
