tM-TH8

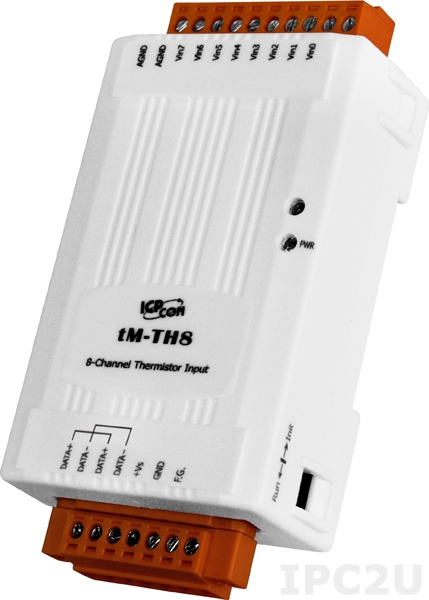

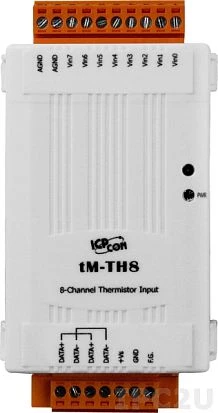

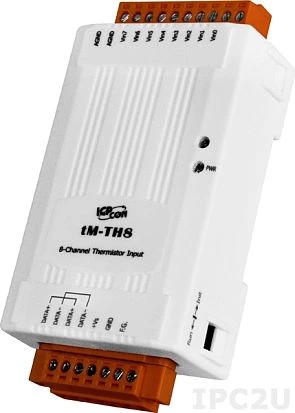

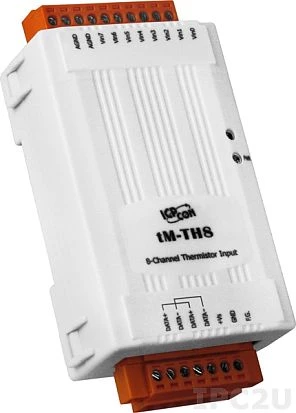

tM-TH8

ICP DAS
SKU: 06058100
8-channel Isolation Thermidtor Input Module with High Voltage Protection (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, Modbus ASCII slave, DCON slave
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
8 Hz
Single-Ended channels
8
Thermistor
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L300, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.35 kg
