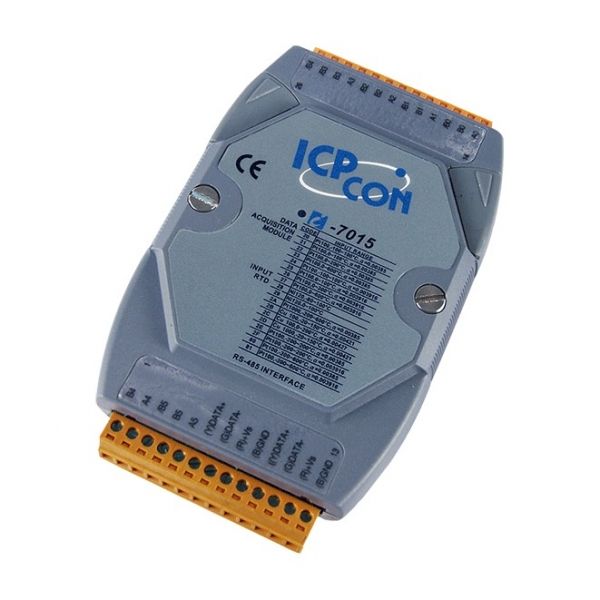

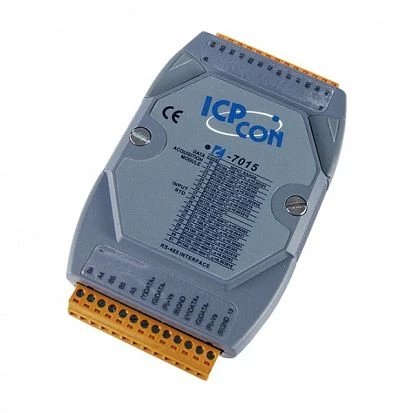

I-7015

I-7015

ICP DAS
SKU: 06161400
6 Channels RTD Input Module
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Analog Input
Total channels of analog input
6
Number of Bits
16 Bit
Sampling rate
0 Hz
Thermal resistance
Pt100, Pt1000, Ni120, Cu100, Cu1000
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
EN 55024-4-4, IEC 61000-4-2
Dimensions
Gross Weight
0.35 kg
