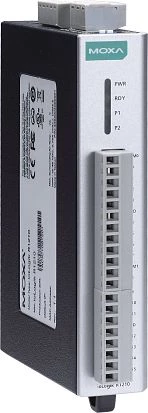

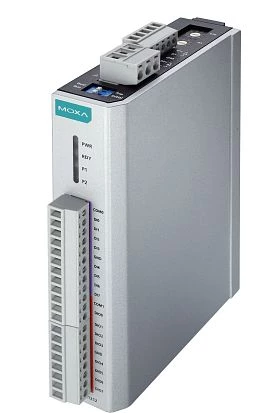

ioLogik R1210-T
MOXA
SKU: 06282100
Ethernet Remote I/O Server, 16DI, RS-485, 24VDC Power Input, w/wide temp. -40..75 C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Supported Protocols
Industrial Protocols
Modbus RTU slave
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Isolation of Digital Input
3000 V
Counter
2.5KHz, 16 bit
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
27.8 mm
Depth
84 mm
Height
124 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15, EN 61000-3-2, EN 61000-3-3
EMS
EN 55024, IEC 61000-4, IEC 61000-6, EN 61000-4-2, EN 61000-4-5
Freefall
IEC 60068-2-32
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.25 kg
Gross Weight
0.25 kg
