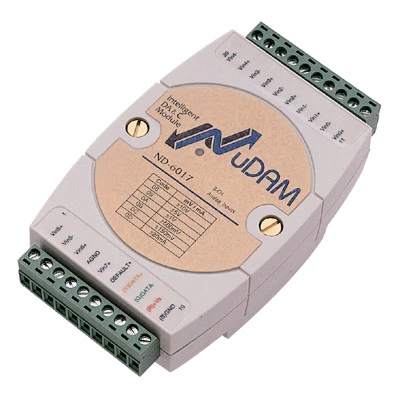

ND-6017
ADLink
SKU: 05690300
8 Channel Analog Input Module, up to 48VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Adlink slave
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
Current range
0...20 mA
Sampling rate
20 Hz
Single-Ended channels
2
Differential channels
6
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
71 mm
Depth
25 mm
Height
101 mm
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions
Gross Weight
0.5 kg
