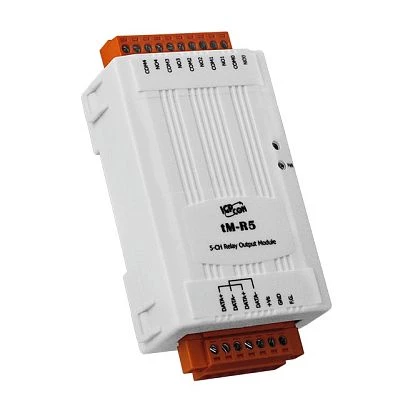

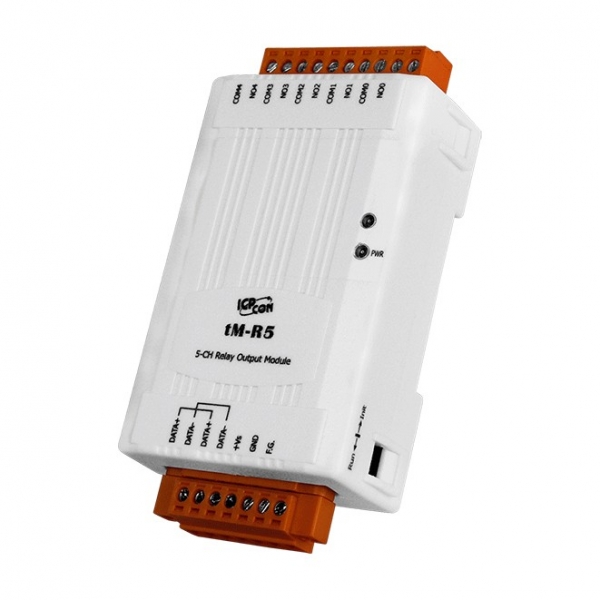

tM-R5

ICP DAS
SKU: 05977100
5-channel Relay Output Module 250VAC/30VDC (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, Modbus ASCII slave, DCON slave
Digital Output
Total channels of digital output
5
Type
Electromagnitic relay
Relay (Form A)
3
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.1 kg
