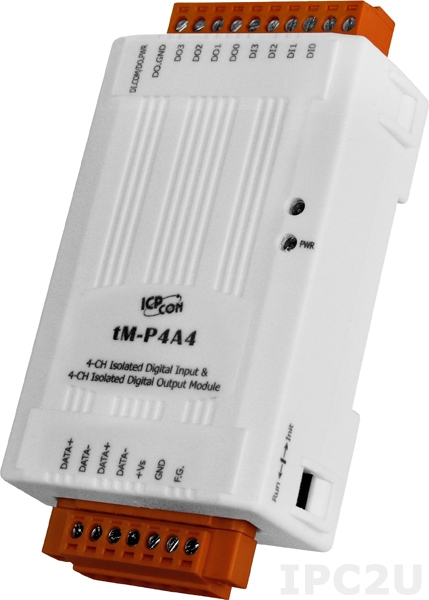

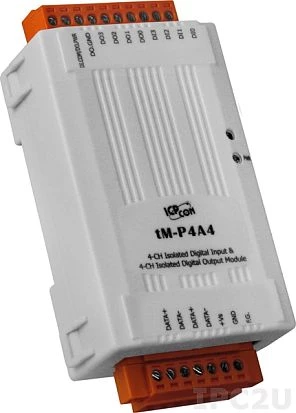

tM-P4A4
ICP DAS
SKU: 05844900
4-channel Isolated Digital Input Module, 4xDigital Output
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, Modbus ASCII slave, DCON slave
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~50 V
Sink/Source
Sink
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Open emmiter
Sink/Source
Source
Output voltage
10~40 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.35 kg
