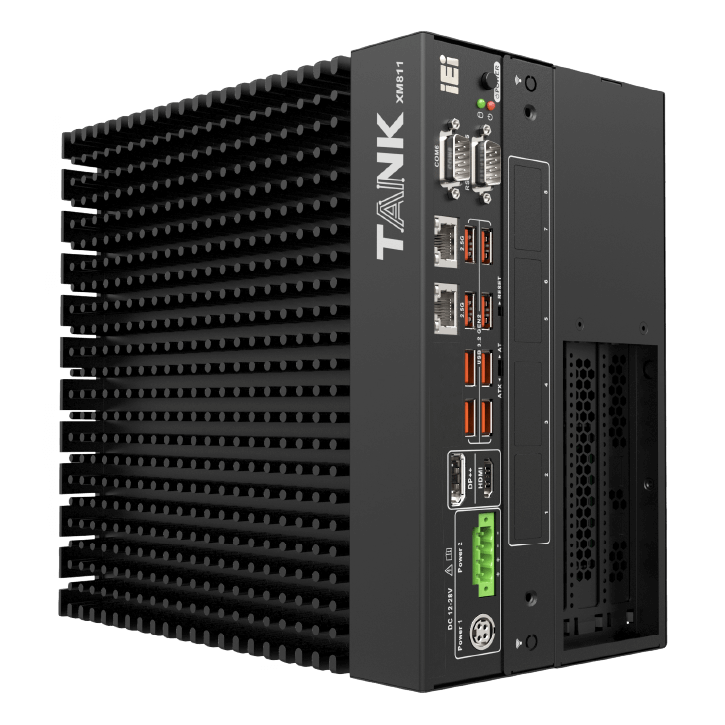

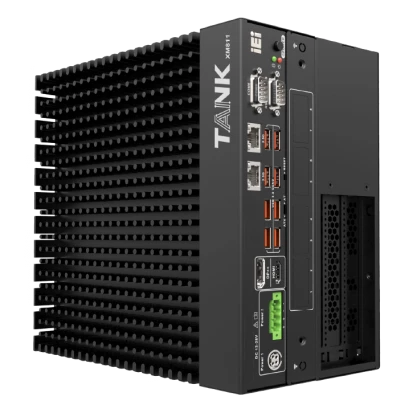

TANK-XM811AI-i5AD/2A

TANK-XM811AI-i5AD/2A

IEI
SKU: 09953900
Rugged Embedded System, Intel 12th Gen Core i5-12500TE 1.9GHz CPU, Intel R680E, 16GB DDR4 RAM (Up to 64GB), 256GB 2.5" SSD, HDMI/DP++, 2x2.5GbE LAN, 6xCOM, 12-bit DIO, 8xUSB 3.2, 1xM.2 2280, 1xM.2 2230, 2xPCIe x8, 12-28VDC-in with 180W PSU, -20..60C
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
Chipset
Chipset
Intel R680E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
Digital Input-Output
Channels of DIO
12
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI Express x8
2
M.2
2
Connectors
Connectors
6xDB9, HDMI, 2xRJ45, 8xUSB, DC input (terminal block), DB15 GPIO, 4-pin DC input
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
137.9 mm
Height
230.6 mm
Depth
255.4 mm
Operating Conditions
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
Chipset
Chipset
Intel R680E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
Digital Input-Output
Channels of DIO
12
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI Express x8
2
M.2
2
Connectors
Connectors
6xDB9, HDMI, 2xRJ45, 8xUSB, DC input (terminal block), DB15 GPIO, 4-pin DC input
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
137.9 mm
Height
230.6 mm
Depth
255.4 mm
Operating Conditions
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
Chipset
Chipset
Intel R680E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
Digital Input-Output
Channels of DIO
12
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI Express x8
2
M.2
2
Connectors
Connectors
6xDB9, HDMI, 2xRJ45, 8xUSB, DC input (terminal block), DB15 GPIO, 4-pin DC input
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
137.9 mm
Height
230.6 mm
Depth
255.4 mm
Operating Conditions
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
Chipset
Chipset
Intel R680E
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225LM, Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
Digital Input-Output
Channels of DIO
12
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI Express x8
2
M.2
2
Connectors
Connectors
6xDB9, HDMI, 2xRJ45, 8xUSB, DC input (terminal block), DB15 GPIO, 4-pin DC input
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
137.9 mm
Height
230.6 mm
Depth
255.4 mm
Operating Conditions
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
4.6 kg
Gross Weight
5.6 kg

Documentation
TANK-XM811_AIoT_Dev_Kit_20230425.pdf
Documentation
TANK-XM811_AIoT_Dev_Kit_20230425.pdf
Documentation
TANK-XM811_AIoT_Dev_Kit_20230425.pdf
Documentation
TANK-XM811_AIoT_Dev_Kit_20230425.pdf

Get a Quote

IEI
SKU: 09953900
TANK-XM811AI-i5AD/2A
