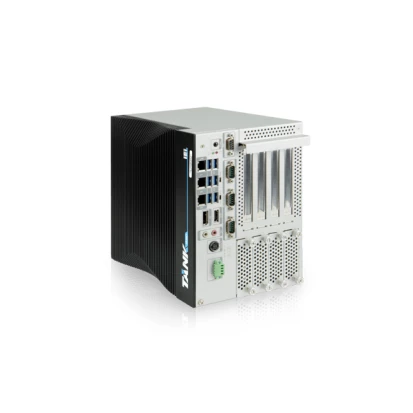

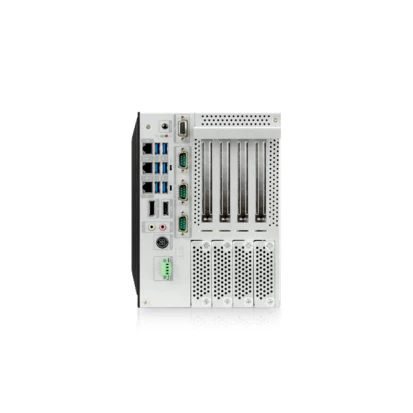

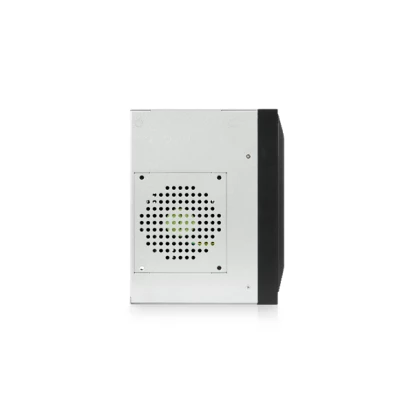

TANK-880-Q370-i7R/8G/4A

TANK-880-Q370-i7R/8G/4A

IEI
SKU: 09029200
Fanless Embedded System, Intel Core i7-9700TE 1.8-3.8GHz CPU, Intel Q370 Chipset, 8GB DDR4, HDMI/DP, 3xGb LAN, 3xCOM, DIO, 6xUSB 3.2, 4x2.5" SATA, Audio, 1xPCIe x16, 1xPCIe x1, 2xPCIe x4, 3xM.2, 1x mPCIe, 9...36V DC-IN, -20...60C
End-of-life product

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-9700TE
Socket
CPU onboard
Max CPU frequency
3.8 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210, Intel i219
10/100/1000 Mbit/s
3
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
4
2.5" Cage Intenal
4
Extension Slots
Total
8
PCI Express x16
1
M.2
3
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DB9 DIO, 4-pin DC input, 12V DC Output
System Power Input
Input Voltage DC
9 V
Power Consumption
103 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
169 mm
Height
255.2 mm
Depth
225 mm
Operating Conditions
Operating Temperature
-20..60 °C
Shock
5G, 11ms
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
