TANK-870e-H110-i5/4G/3B

TANK-870e-H110-i5/4G/3B

IEI
SKU: 56526300

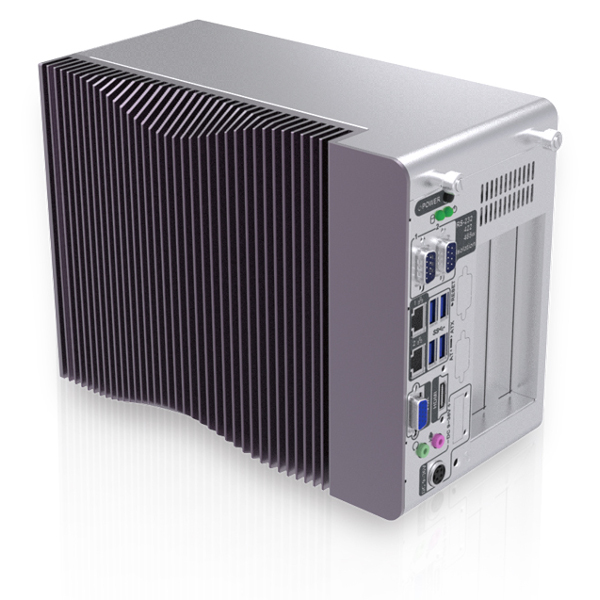

Fanless Embedded System, Intel Core i5-6500TE 2.3GHz CPU, Intel H110 Chipset, 4GB RAM on board-Up to 32GB DDR4 RAM, VGA/HDMI, 2xGb LAN, 2xCOM, 4xUSB 3.0, 1x2.5" SATA HDD/SDD bays, Audio, 1x PCI and 2 x PCIe, 9...36V DC-IN, -20...60C
Price on request
Available
Available

Construction
Mounting Configuration
DIN-Rail mount, Desktop, Wall
CPU
Processor Installed
Intel Core i5-6500TE
CPU Support Type
Core i5, Core i7
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Extension Slots
PCI
1
PCI Express x1
2
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, Mic In, Line Out
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise
Dimensions and weight
Width
132.6 mm
Height
255.2 mm
Depth
190 mm
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
4.5 kg
Gross Weight
6.5 kg
