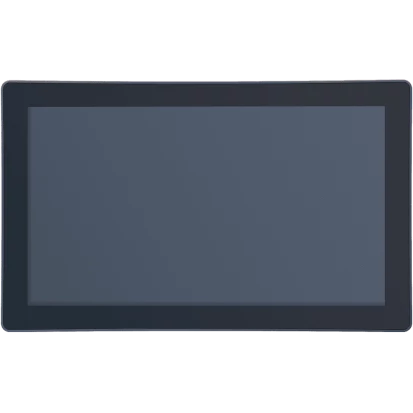

SP-211C-11135G7

SP-211C-11135G7

Arbor
SKU: 80133700
21.5" Fanless Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, up to 32GB DDR4 RAM, HDMI, 1x2.5GbE, 2xGbE LAN, 2xCOM DB9, 4xCOM terminal Block, 4xUSB3.1, 1xM.2 2242 (SATA), 1xMiniPCIe, 1xM.2 2230, 12-36VDC-in
Price on request
Available
Available
External Power Adapter
Price with VAT
Price on request
External Power Adapter
Price with VAT
Price on request
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i226V
Total Ethernet
3
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
Interfaces
COM Total
6
RS-232
2
RS-232/485
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Internal Ports
GPIO
Connectors

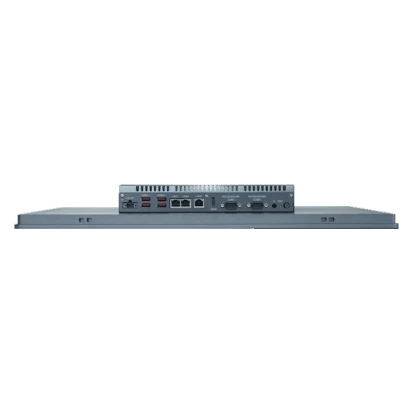

2xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), 4xCOM (terminal block)
System Power Input
Input Voltage DC
10..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
528.2 mm
Height
321.9 mm
Depth
59 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.14 kg
Gross Weight
8.1 kg
