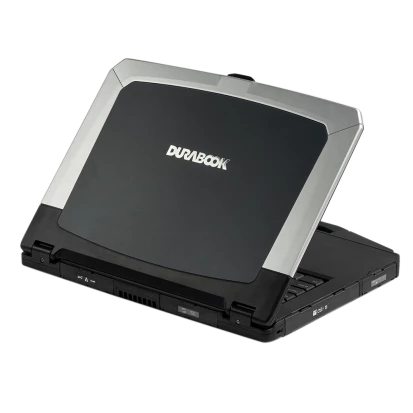

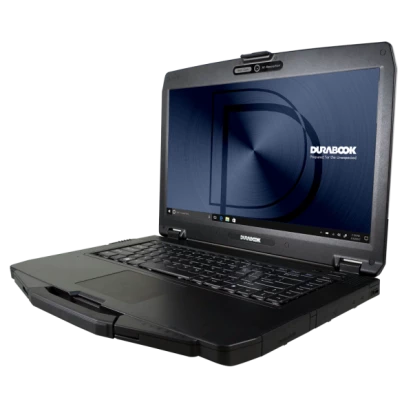

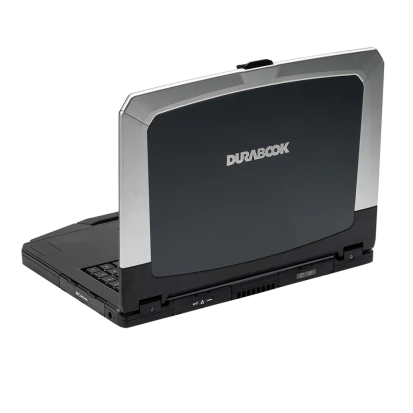

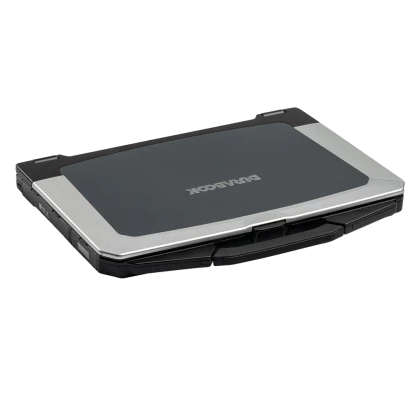

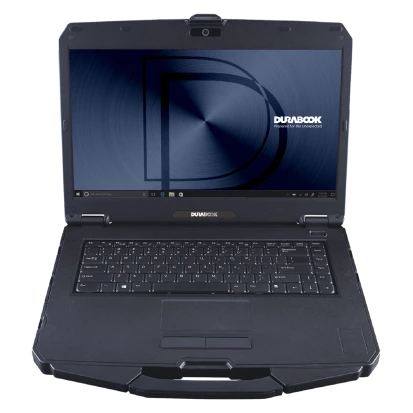

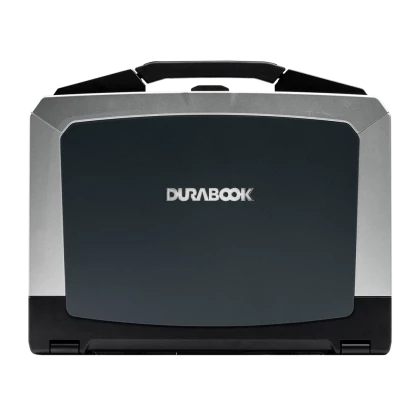

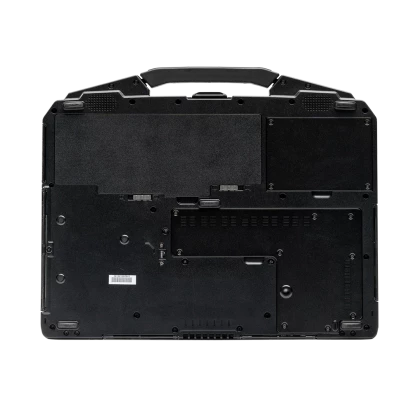

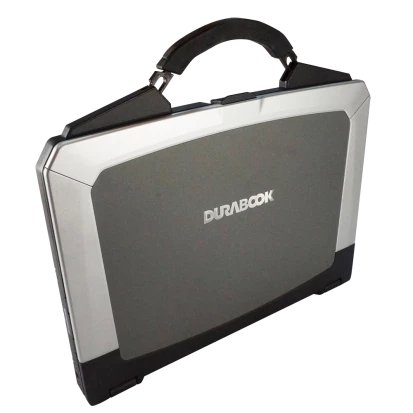

S15AB-DURABOOK-Rugged-M

S15AB-DURABOOK-Rugged-M

Durabook
SKU: 57325100
15" Rugged Notebook, FHD 1920x1080 400nits, Intel Core i5-8265U, 8GB RAM, 256GB SSD, VGA/HDMI, 3xUSB, 1xLAN, 1xCOM, 2MP CAM, WiFi+BT, SmartCard Reader, Standard Keyboard, TPM, without DVD, Windows 10 Pro, Support Windows 11
Price on request
Available on order
Available on order
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Price on request
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP50
Protection Level of Chassis
IP50
Type
Fan
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i5-8265U
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM 260-pin
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics 620
Interfaces
HDMI, VGA
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
SD Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Slim Optical Disk Drive bays
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
256 GB
Additional Functions
Camera Frontside
2 MP
GPS
Optional
Smart Card Reader
Yes
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.0
Keyboard / Pointing Devices
Type Keyboard
Waterproof
Layout
English, German
Type Mouse
TouchPad
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, DB15 VGA, HDMI, RJ45 Ethernet, 3xUSB, Audio, DC Input, Smart card slot, SD card slot, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Input Voltage AC
110..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
7600 mA*h
RunTime Battery 1
13.5 h
Battery 1 Hotswap
No
Software
Operating System Installed
Windows 10
Dimensions and weight
Width
375 mm
Height
273 mm
Depth
29.5 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Temperature (Storage)
-40~+70
Standards and Certifications
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Vibration And Shock
ASTM 4169-08
Dimensions
Net Weight
2.6 kg
Gross Weight
4 kg
