L140V2-4-Series
Winmate
SKU: 57620100

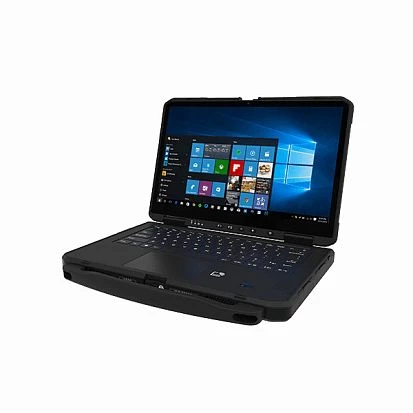

14" Rugged Notebook, 1920x1080, 700 nits, PCAP, AMD Ryzen V2516 2.1GHz CPU, Up to 32GB DDR4 RAM, Up to 2TB SSD, HDMI, 1xGbE LAN, 4xUSB, 1xCOM, F+R Camera, WiFi+BT, 4G LTE, GPS, RFID, Micro SDXC, SIM, SmartCard, Audio, TPM 2.0, Win 10 IoT, -20..50C
Price on request
Available on order
Available on order
Construction
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LED
Diagonal
14 "
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
Memory
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232
1
USB Total
4
Storage Cage
2.5" Cage External
1
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED, RFID LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 3xUSB, SIM Card Slot, MicroSD card slot, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
2400 mA*h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
2400 mA*h
Additional Battery Hotswap
Yes
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
340 mm
Height
230 mm
Depth
38 mm
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.5 kg
Gross Weight
4.95 kg
