N14A-Laptop-M
ONERugged
SKU: 80208600

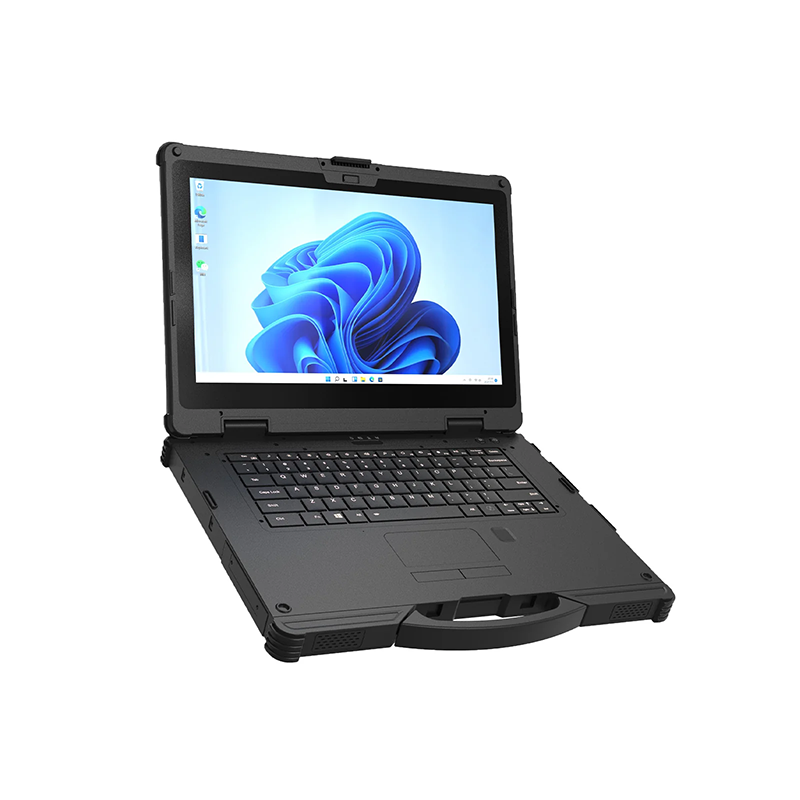

14" Rugged IP65 N14A Notebook, Intel Core i5-1235U/i7-1255U CPU, 1920x1080 1000nits, QWERTY US keyboard, 16GB DDR4, 256GB M.2 SSD, 3xUSB, Type-C, COM, 2x LAN, Audio, SD Slot,SIM, GPS/WiFi/BT, 5.0MP Front Cam, 1300+4850mAh, w/PSU, Win 11 Pro or IoT
1 596,88 €
Price exlc. VAT and shipping costs
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
1000 Cd/m2
CPU
СPU Generation/Family
Alder Lake
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax), Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB 2.0
1
USB v3.x
3
Drive interfaces
M.2
2
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E
Additional Functions
Camera Frontside
5 MP
GPS
GPS
NFC
Optional
Fingerprint Scanner
Yes
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Bluetooth
v5.1
Keyboard / Pointing Devices
Type Keyboard
Membrane with backlight
Layout
English US
Type Mouse
TouchPad
LED / Controls
LED
1xHDD LED, Power LED, WLAN LED, WWAN LED
Controls
On/Off
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input, MicroSD card slot, Mini HDMI, 1xUSB type C (Thunderbolt 4)
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
72 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
1300 mA*h
RunTime Battery 1
1.5 h
Battery 1 Hotswap
No
Additional Battery Type
Li‑pol
Additional Battery Capacity
4700 mA*h
RunTime Battery 2
6.5 h
Additional Battery Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
363.2 mm
Height
287.4 mm
Depth
42.1 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Temperature (Storage)
-30~+70
Standards and Certifications
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
2.8 kg
Gross Weight
3.4 kg
Construction
