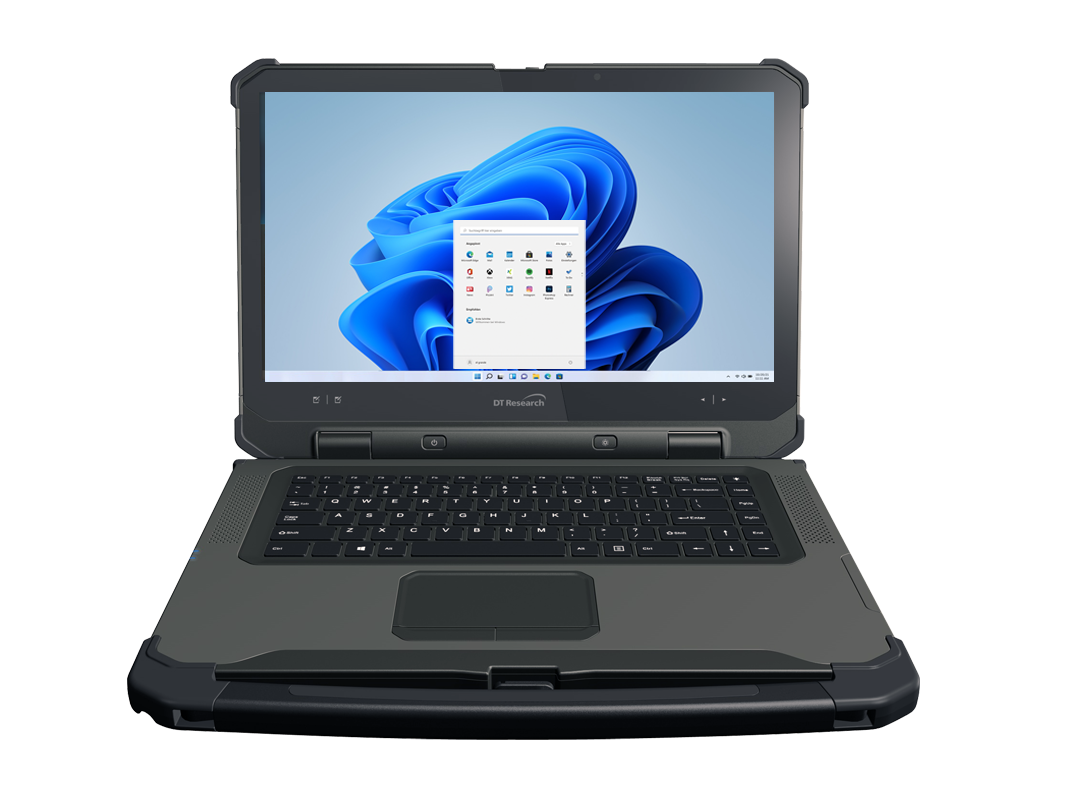

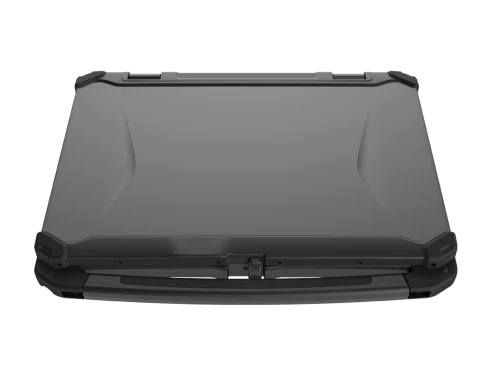

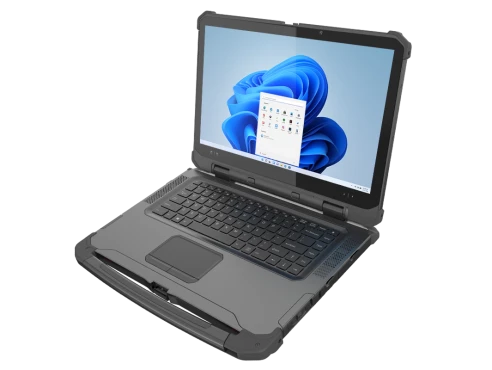

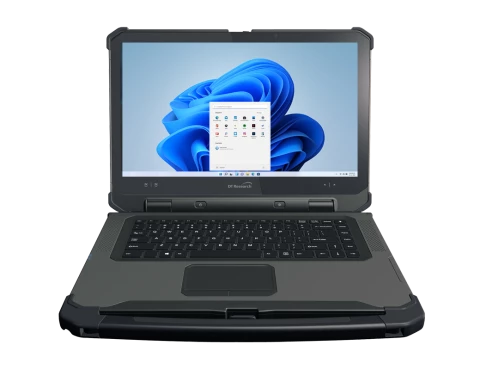

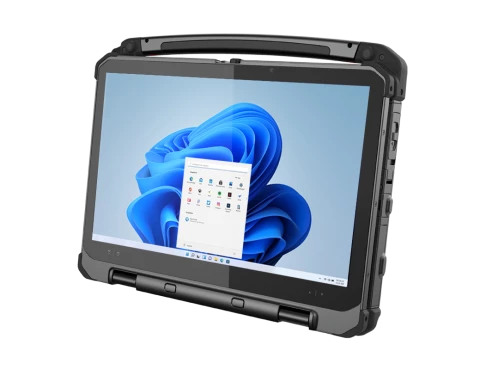

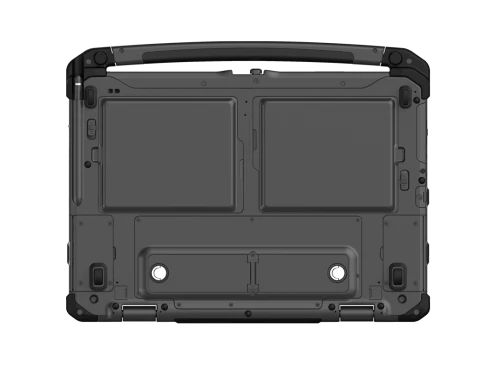

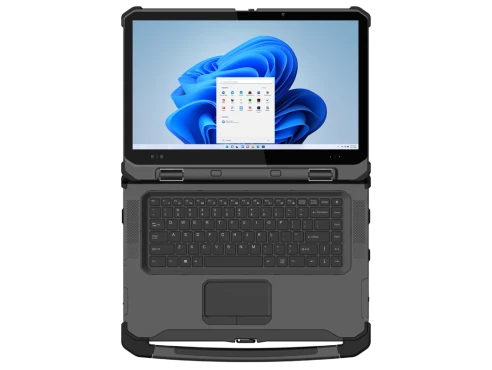

LT350-Rugged-Laptop--M
DT Research
SKU: 80166700
15.6" Rugged LT350 Convertible Laptop, IP65, 1920x1080, PCAP, 1000cd/m2, Intel 12th Gen Core i5/i7 CPU, HDMI, 1xGbE LAN, 2xUSB 3.0, 1xUSB-C, 1xCOM, Smart Card, WiFi/BT, Opt. (LTE/GPS/Front Cam.), 2x5400mAh Bat., 19VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Socket
FCBGA1744
CPU Support Type
Core i5, Core i7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
1
USB Total
3
USB v3.x
3
Drive interfaces
M.2
1
SD Slots
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Additional Functions
GPS
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.2
Keyboard / Pointing Devices
Type Keyboard
Membrane with backlight
Number of Keys
86
Layout
German
Type Mouse
TouchPad
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons

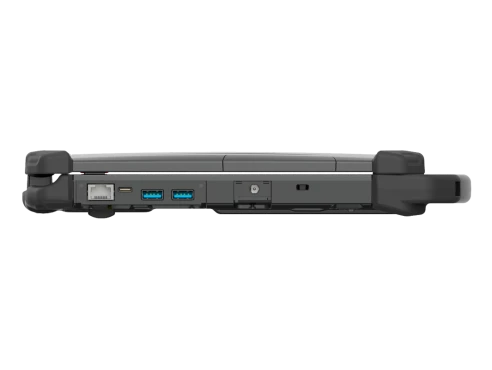

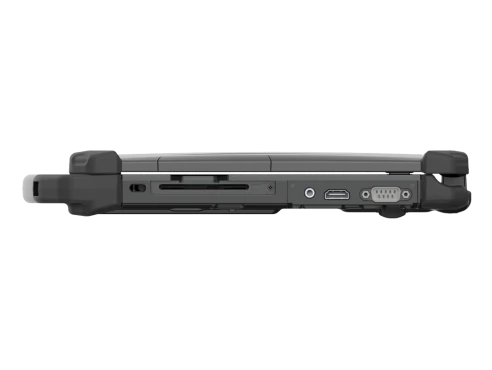

Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 2xUSB, Line Out, DC Input, SD card slot, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5400 mA*h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑pol
Additional Battery Capacity
5400 mA*h
Additional Battery Hotswap
Yes
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
385 mm
Height
268.5 mm
Depth
35.8 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-90%
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC Class B, rohs
Dimensions
Net Weight
4.06 kg
Gross Weight
5 kg
