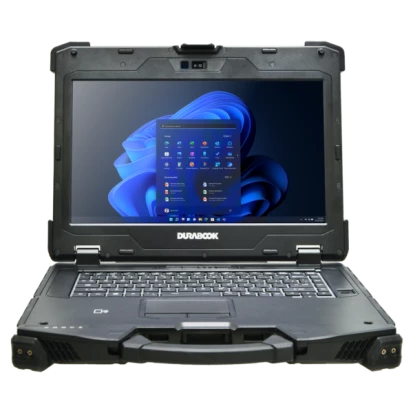

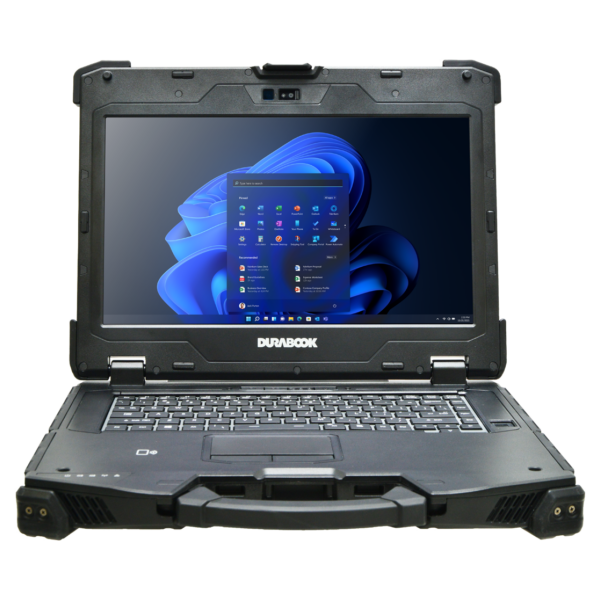

Z14I-DURABOOK-Rugged-M
Durabook
SKU: 57325000
14" Rugged Z14i Notebook,Full IP66,1920x1080,1000cd/m2,Intel Core Ultra 7/5 CPU,Up to 64GB DDR5 RAM,Up to 2TB NVMe SSD,VGA/HDMI,2xLAN,3xUSB,2xThunderbolt,2xCOM,2MP CAM,Audio,WiFi7/BT5.4,ExpressCard 54,MicroSD,Win 11 Pro,Keyboard with Backlight
Price on request
Available
Available
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP66
Type
Fanless

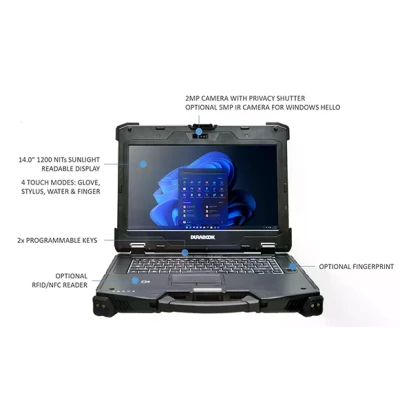

Display
Display Type
LCD TFT
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
1000 Cd/m2

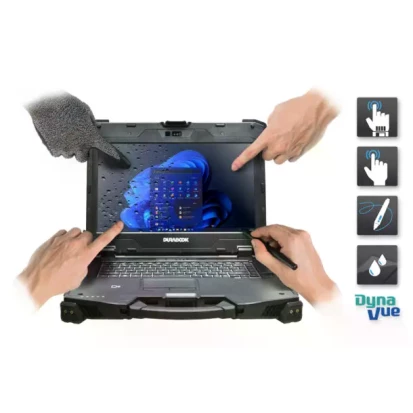

Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125U
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Max CPU frequency
4.3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
1
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
2
MicroSD
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M
SIM Card slots
Yes, 1, Nano SIM
Additional Functions
Camera Frontside
2 MP
GPS
Optional
RFID Reader
Optional
Smart Card Reader
Yes
NFC
Optional
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional)
Bluetooth
v5.4
Keyboard / Pointing Devices
Type Keyboard
Waterproof
Layout
English US, German, France
Type Mouse
TouchPad
LED / Controls
LED
LED Bar
Controls
On/Off, Control Buttons

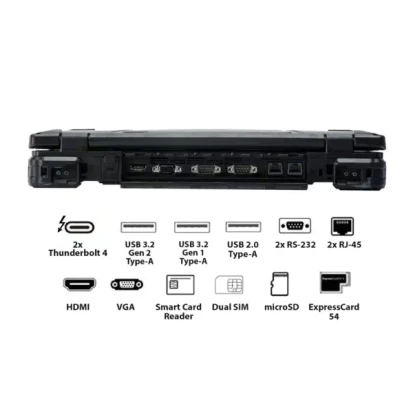

Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 3xUSB, DC Input, SIM Card Slot, Smart card slot, MicroSD card slot, 2xUSB type C (Thunderbolt 4)

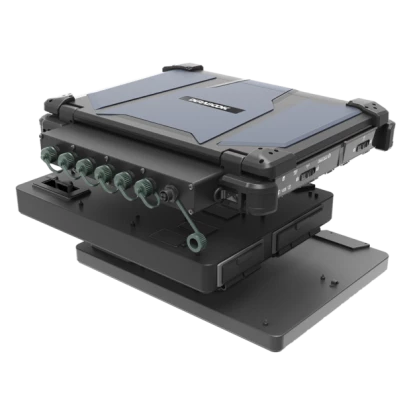

Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
6900 mA*h
RunTime Battery 1
12.5 h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
4700 mA*h
RunTime Battery 2
9 h
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows 11
Dimensions and weight
Width
356 mm
Height
50 mm
Depth
280 mm
Operating Conditions
Operating Temperature
-29..63 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
Explosion safety
UL/cUL Class I Division 2
MIL-STD-810
MIL-STD-810G Test Method 500.5 Low Pressure (Altitude), MIL-STD-810G Test Method 501.5 High Temperature, MIL-STD-810G Test Method 502.5 Low Temperature, MIL-STD-810G Test Method 503.5 Temperature Shock, MIL-STD-810G Test Method 505.5 Solar Radiation (Sunshine), MIL-STD-810G Test Method 506.5 Rain, MIL-STD-810G Test Method 509.5 Salt Fog, MIL-STD-810G Test Method 521.3 Icing/Freezing Rain
Dimensions
Net Weight
3.6 kg
Gross Weight
5.2 kg
