L140AD-3
Winmate
SKU: 11025500

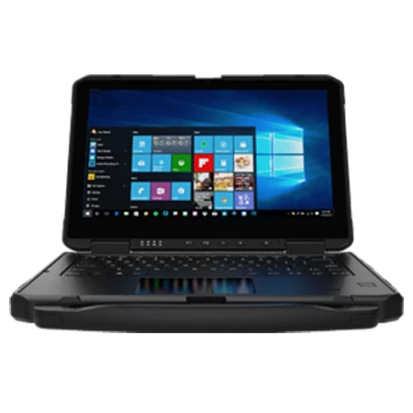

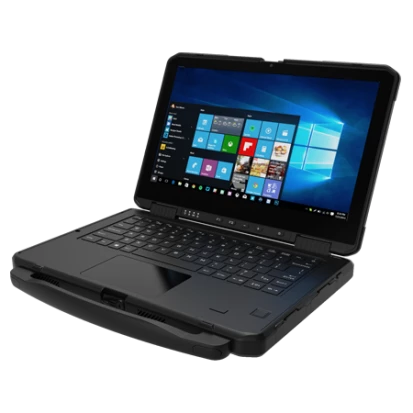

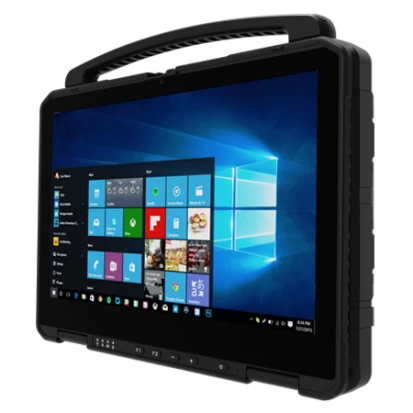

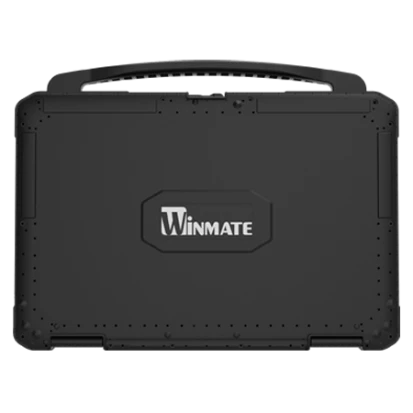

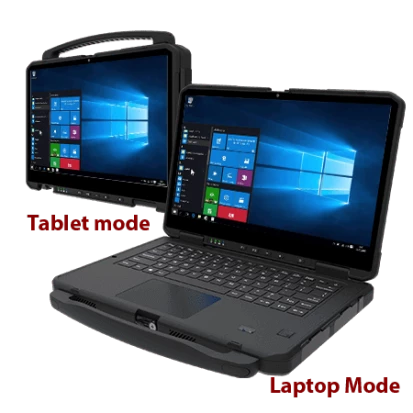

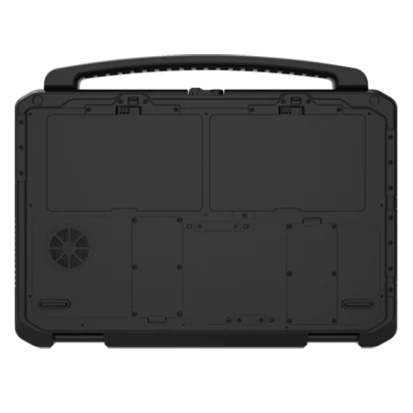

13.3" Rugged Notebook, 1920x1080, 500cd/m2, PCAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVME SSD, HDMI, 1xGbE LAN, 3xUSB 3.0, 1xUSB Type-C, 1xCOM, MicroSD, SIM, Audio, 2M Cam, WiFi/BT/GPS, Win 10 IoT, 2x3220mAh Bat, 19VDC-in, -20..60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LED
Diagonal
13.3 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
CPU onboard
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
SIM Card slots
Nano SIM
Additional Functions
Camera Frontside
2 MP
GPS
GPS, GLONASS
RFID Reader
Optional
Smart Card Reader
Yes
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional), 5G
Bluetooth
Yes
Keyboard / Pointing Devices
Type Keyboard
Membrane with backlight
Layout
English, Russian
Type Mouse
TouchPad
LED / Controls
LED
LED Bar, Battеry Status, Power LED, RFID LED
Controls
KeyPad
Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 3xUSB, Audio, SIM Card Slot, MicroSD card slot, USB type C
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
230 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3220 mA*h
RunTime Battery 1
5.5 h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
3220 mA*h
RunTime Battery 2
5.5 h
Additional Battery Hotswap
Yes
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
340 mm
Height
230 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
MILSTD810H Method 514.8 Procedure I
Shock
MILSTD810H Method 516.8, 3 ft
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.5 kg
Gross Weight
3.1 kg
