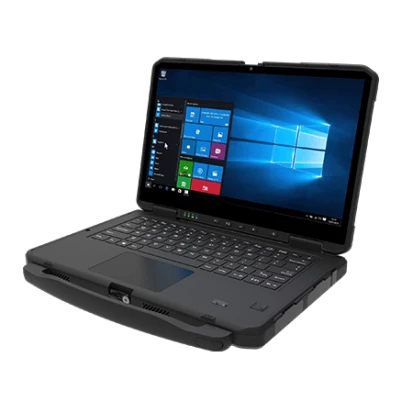

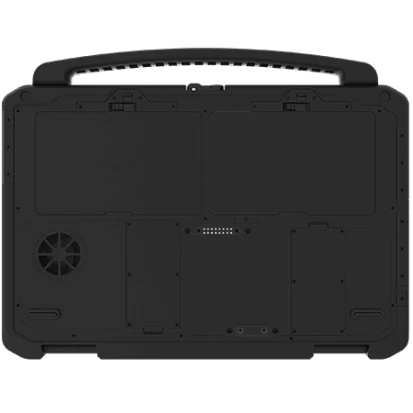

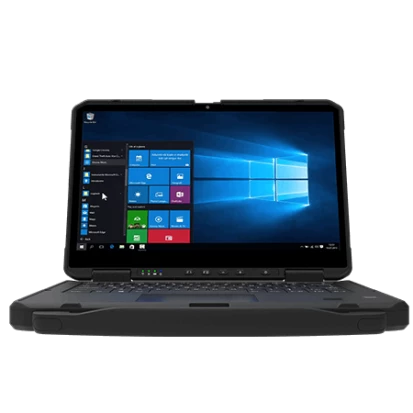

L140AD-4L
Winmate
SKU: 11200500
14" Rugged Notebook, 1920x1080, 300cd/m2, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVME SSD, HDMI, 1xGbE LAN, 3xUSB 3.0, 1xUSB Type-C, MicroSD, SIM, Audio, 2M Cam, WiFi/BT, Win 10 IoT, 2x3220mAh Bat, 19VDC-in, -20..60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LED
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
800~1
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Max CPU frequency
4.4 GHz
Memory
Form-factor
DDR5
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
2
MicroSDHC
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
1
SIM Card slots
Nano SIM
Additional Functions
Camera Frontside
2 MP
GPS
GPS, GLONASS
RFID Reader
Optional
Smart Card Reader
Yes
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
Bluetooth
Yes
Keyboard / Pointing Devices
Type Keyboard
Membrane
Type Mouse
TouchPad
LED / Controls
LED
Power LED
Controls
Function Keys
Connectors
Connectors
HDMI, RJ45, 4xUSB, Audio (in/out/Mic), SIM Card Slot, MicroSD card slot
System Power Input
Input Voltage DC
19..19 V
Input Voltage AC
100..240 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3220 mA*h
RunTime Battery 1
11 h
Battery 1 Hotswap
Yes
Additional Battery Type
Li‑ion
Additional Battery Capacity
3220 mA*h
RunTime Battery 2
11 h
Additional Battery Hotswap
Yes
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11
Dimensions and weight
Width
340 mm
Height
230 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.5 kg
Gross Weight
3.1 kg
