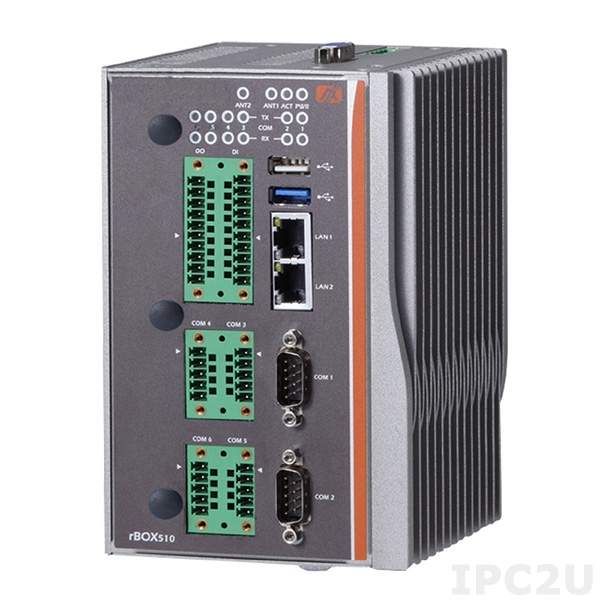

rBOX510-6COM (ATEX/C1D2)
AXIOMTEK
SKU: 06892800
Robust Din-rail Fanless Embedded System with Intel Intel Atom Processor E3827 1.75GHz, 4GB DDR3L, 2xGbE LAN, 6xCOM, DIO, 2.5" SATA SSD/HDD bay, CF, 3xMiniPCIe, 12-48V DC, -40..70C, with ATEX/C1D2 certificate
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration

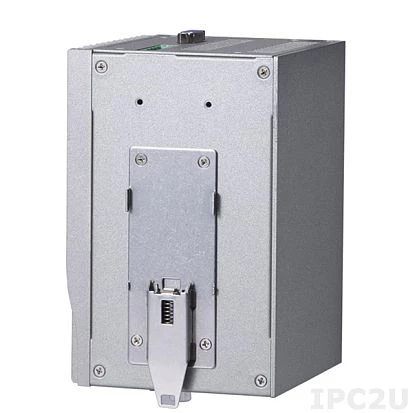

DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Drive interfaces
mSATA
1
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DB15 VGA, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), DIO (terminal block), 4xCOM (terminal block)
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS
Dimensions and weight
Width
100.6 mm
Height
135 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5G, 10 - 150 Hz, amplitude 0.35 mm
Shock
Operating, 25G, half-sine, duration 11 ms
Standards and Certifications
Certifications
CE
Explosion safety
ATEX Zone 2 Group II, UL/cUL Class I Division 2
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Dimensions
Net Weight
1.5 kg
Gross Weight
2.01 kg
