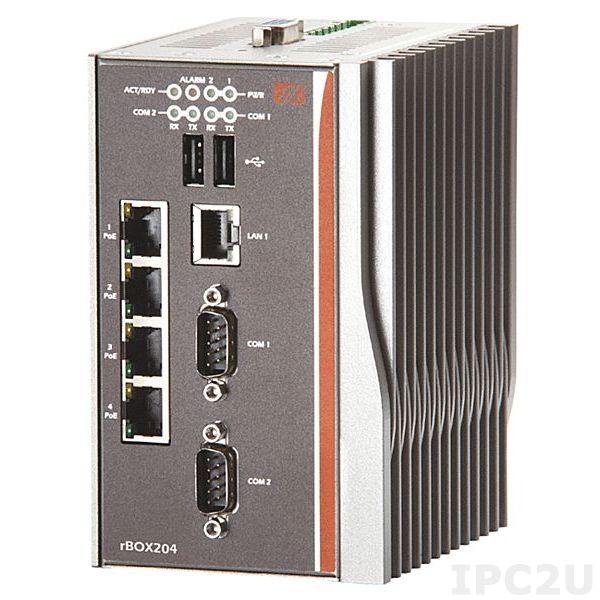

rBOX204-FL-RC-DC
AXIOMTEK
SKU: 66284800
Robust Din-rail Fanless Embedded System with AMD LX800 Processor, CS536AF Chipset and 4-port PoE
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Type
Fanless
CPU
Processor Installed
AMD LX800
Socket
CPU onboard
Max CPU frequency
0.5 GHz
Memory
Form-factor
DDR
Maximum Memory
1 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DB15 VGA, 4xRJ45, RJ45 Ethernet, 2xUSB, 2xDC input (terminal block)
System Power Input
Input Voltage DC
48 V
Software
Operating System Compatibility
Windows CE 5.0, Windows CE 6.0, Windows XP Embedded, Linux OS
Dimensions and weight
Width
81 mm
Height
135 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5G, 10 - 150 Hz, amplitude 0.35 mm
Shock
Operating, 25G, half-sine, duration 11 ms
Standards and Certifications
Freefall
IEC 60068-2-32
Safety
UL 60950-1, UL 508, EN 60950-1, IEC 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.38 kg
Gross Weight
1.72 kg
