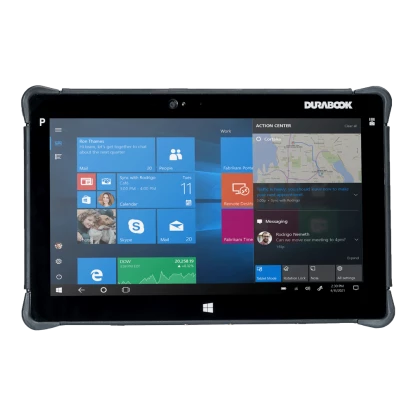

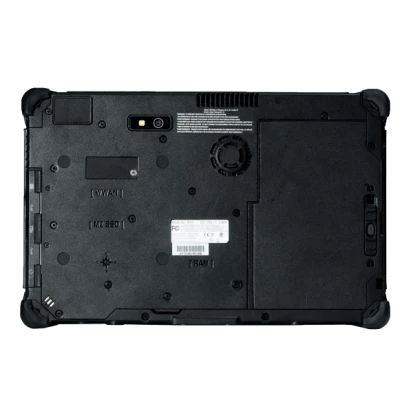

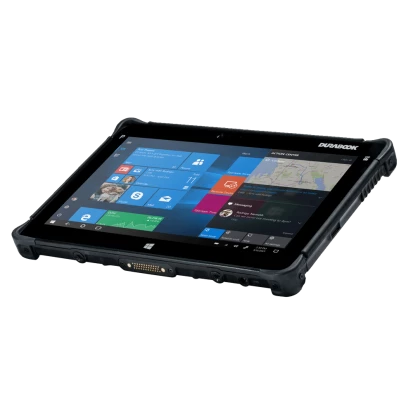

R11L-DURABOOK-Rugged-Tablet-M

R11L-DURABOOK-Rugged-Tablet-M

Durabook
SKU: 57325400
11.6" Rugged IP65 Tablet, FHD 1920x1080 500nits Display, Intel Pentium 4417U 2.30 GHz, 4GB RAM, 128GB SSD, 2xUSB, 1xLAN, 2MP/5MP Front/Rear CAM, WiFi+BT, Docking port, Windows 10 Pro, Support Windows 11
Price on request
Available
Available
System configuration
Price with VAT
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
11.6 "
Maximum resolution
1920x1080 Dots
Brightness
360 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Pentium 4417U
Max CPU frequency
2.3 GHz
Memory
Default on Board Memory
4 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 610
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
USB Total
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
1
MicroSD
1
MicroSDHC
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes
Additional Functions
Camera Frontside
2 MP
Rear Camera
5 MP
GPS
GPS
RFID Reader
Optional
Barcode Scanner
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
v5.0
LED / Controls
LED
Battеry Status, Power LED, WLAN LED
Controls
On/Off, Control Buttons
Connectors
Connectors
2xUSB, DC Input, SIM Card Slot, MicroSD card slot, Jack 3.5
Docking Station
Yes
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
65 W
Battery
Battery 1 Technology
Li-ion
Battery Capacity
3950 mA*h
RunTime Battery 1
0 h
Software
Operating System Installed
Windows 10
Dimensions and weight
Width
299 mm
Height
20 mm
Depth
192 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
MIL-STD-810
MIL-STD-810G Test Method 500.5 Low Pressure (Altitude), MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.2 kg
Gross Weight
3 kg
