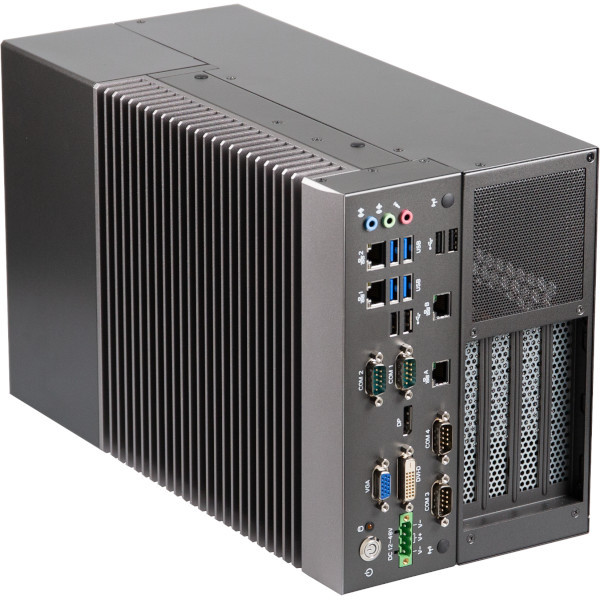

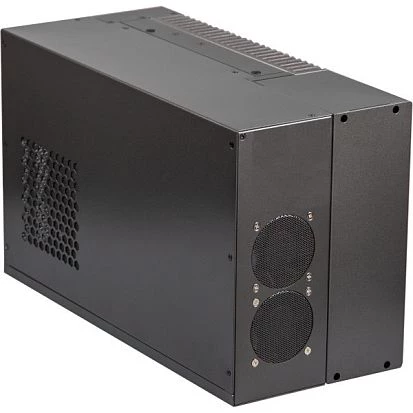

QBiX-JMB-CFLA310HG-B1
GIGAIPC
SKU: 57577100
Fanless Embedded PC, Intel 9th/8th Gen Core i7/i5/i3/Pentium/Celeron CPU, Intel H310, Up to 32GB DDR4 RAM, 4xGbE LAN, DVI-D, VGA, DP, Audio, 3x2.5" Drive Bay, 2xM.2, 1xMini-PCIe, 8xUSB, 4xCOM, Discrete GPU Support, 24..48VDC-in Full Range, -20..50C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fans
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
Memory
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
Storage Cage
2.5" Cage Intenal
3
Extension Slots
PCI Express x16
1
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, 4xRJ45 Ethernet, 8xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block)
Dimensions and weight
Width
224 mm
Height
166.3 mm
Depth
368 mm
Operating Conditions
Vibration
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 & Without Graphics Cards; Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
5 kg
