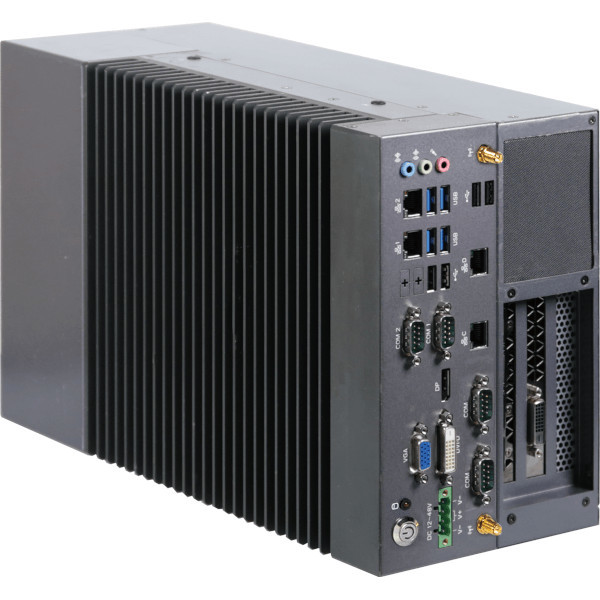

QBiX-JMB-CFLA310HG-A1
GIGAIPC
SKU: 57081200
Fanless Embedded PC, Intel 9th/8th Gen Processor, 2xDDR4 SO-DIMM, 4xGbE, DVI-D, VGA, DisplayPort, 3xSATA3, M.2 2230, M.2 2280, Mini-PCIe, PCIe, 4xUSB 3.0, 4xUSB 2.0, 2xRS-232/422/485, 2xRS-232, 1xPCIe x16, 1xPCIe x1, 24..36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Storage Cage
2.5" Cage Intenal
3
Extension Slots
PCI Express x16
1
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
Yes
Connectors
Connectors
DVI-D, DB15 VGA, 4xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block), 4xUSB (4-pin), 4xDB9 Male
System Power Input
Input Voltage DC
24 V
Power Supply
Type of Power Supply
DC-DC
Dimensions and weight
Width
224 mm
Height
146 mm
Depth
343 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280, Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock
IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Dimensions
Net Weight
2.7 kg
Gross Weight
5 kg
