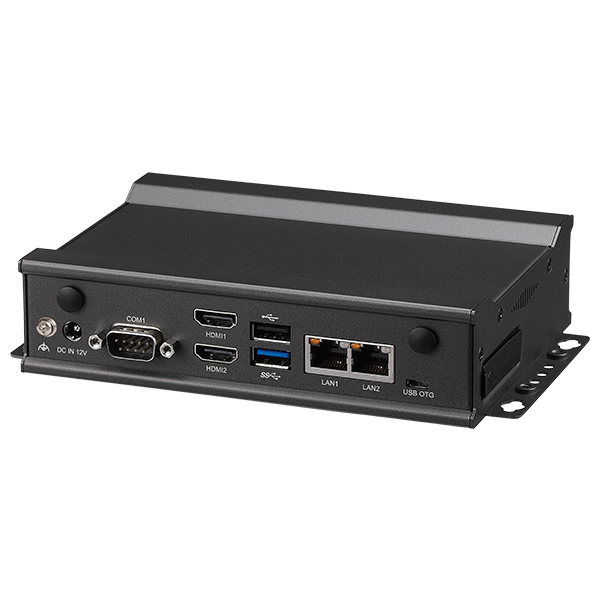

NDiS-B116
NEXCOM
SKU: 09170000
Fanless Digital Signage Player, Rockchip RK3399 ARM Cortex-A72 Dual Core and Cortex-A53 Quad Core CPU, 2GB DDR4, 8GB eMMC Flash, 2xHDMI, LVDS, eDP, 1xMIPI DSI, 2xGbit LAN, 3xUSB-A, 1xmPCIe, Audio, 12V DC-In, Android 7.1
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
ARM Cortex
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Graphic
Graphic Controller
Mali-T764
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
2
USB v3.x
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 3xUSB, DC Input, DB9 Male, 1xMicro USB
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
AC-AC
Output Power
60 W
Software
Operating System Installed
Android
Dimensions and weight
Width
179.5 mm
Height
112.5 mm
Depth
39.5 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.65 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
ARM Cortex
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Graphic
Graphic Controller
Mali-T764
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
2
USB v3.x
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 3xUSB, DC Input, DB9 Male, 1xMicro USB
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
AC-AC
Output Power
60 W
Software
Operating System Installed
Android
Dimensions and weight
Width
179.5 mm
Height
112.5 mm
Depth
39.5 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.65 kg
Gross Weight
1.5 kg
