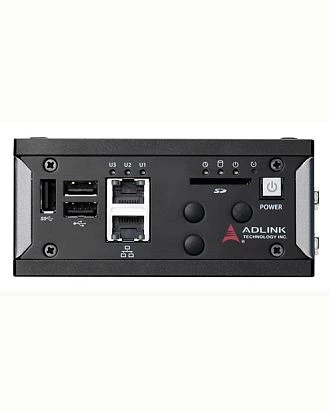

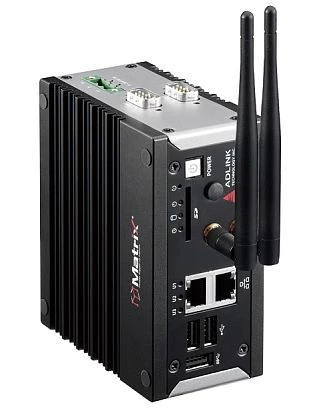

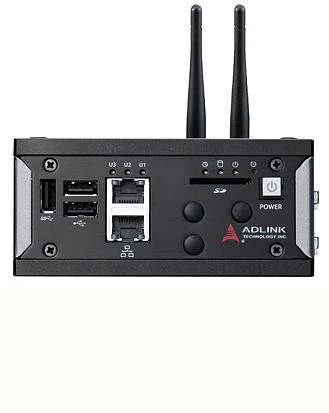

MXE-101i
ADLink
SKU: 06991800
Intel Quark SoC X1021 fanless embedded controller with 1GB DDR3, 2xLAN, 2xCOM, 3xUSB 2.0, 2x PCIe Mini Card, 1xUSIM, 1xSD Card Slot
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
Intel Quark X1021
Max CPU frequency
0.4 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB 2.0
3
Extension Slots
SIM Card slots
1
System Power Input
Input Voltage DC
6..36 V
Software
Operating System Installed
Wind River XT 2.0
Dimensions and weight
Width
120 mm
Height
55 mm
Depth
100 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz
Dimensions
Net Weight
0.65 kg
Gross Weight
1 kg
