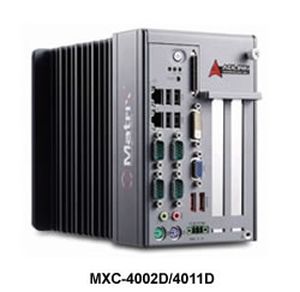

MXC-4002D/M2G
ADLink
SKU: 05980300
Intel Atom D510 1.66GHz fanless configurable controller with 2 PCI slots, 12-CH DI, 12-CH DO and 2GB memory
Price on request
Available
Available
Construction
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Atom D510
Socket
CPU onboard
Max CPU frequency
1.66 GHz
Memory
Form-factor
DDR2
Default on Board Memory
2 GB
Assembly
Removable
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
24
Isolation DIO
Yes
Drive interfaces
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Audio Out, Mic In, External SATA, DC input (terminal block)
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
118 mm
Height
183 mm
Depth
219 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
NaN,NaN,NaN,NaN,NaN,NaN
Shock
NaN,NaN,NaN,NaN,NaN
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
2 kg
