MXC-2300-3S

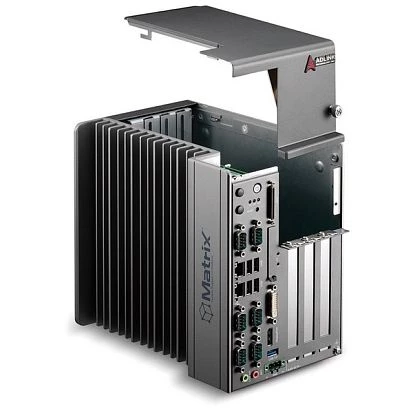

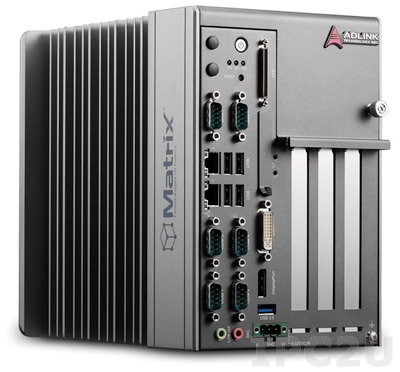

MXC-2300-3S

ADLink
SKU: 56125400
Intel Atom E3845 Fanless Expandable Embedded Computer 1.91 GHz, 4GB DDR3L, DP, VGA, DVI, 2xGB LAN, 5xUSB, 3x PCI, Audio, 9-32V DC input, BIOS support Win 7
Price on request
Available
Available

Construction
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
64 GB
Extension Slots
Total
3
PCI
3
Connectors
Connectors

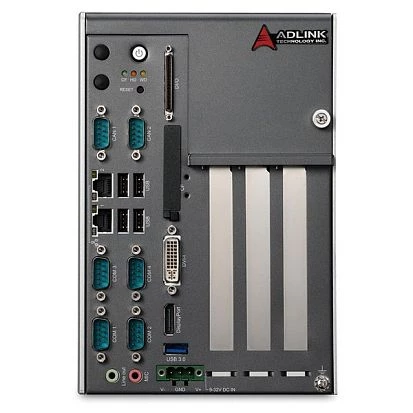

4xDB9, DVI-I, DB15 VGA, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
142 mm
Height
210 mm
Depth
219 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
CF/SSD: Operating, 5 Grms, 5-500 Hz, 3 axes
Shock
CF/SSD: Operating, 50 G, half sine 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL/cUL, CB
Dimensions
Net Weight
4.7 kg
Gross Weight
4.7 kg
