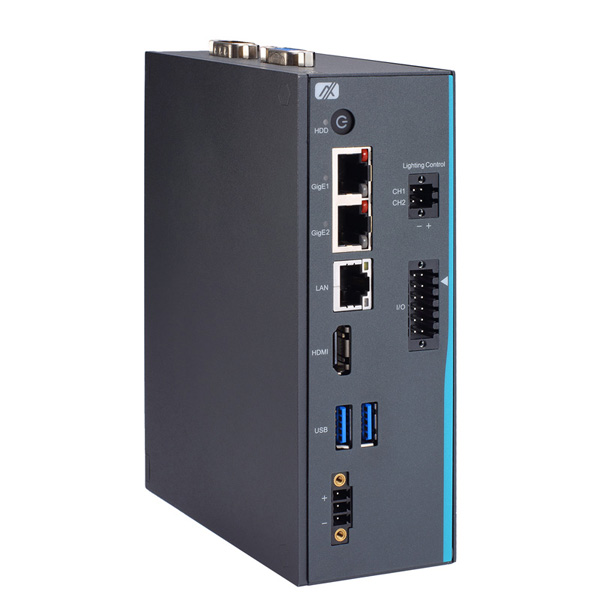

MVS100-323-FL
AXIOMTEK
SKU: 09202100
Fanless Vision System with Intel Atom x5-E3940 CPU, 1xDDR3L SO-DIMM up to 8GB, HDMI, VGA, 2xIEEE802.3at PoE GbE LAN, 1xGbE LAN, Vision I/O (4CH trigger IO, 4CH DIO, 2CH lighting ctrl), 1xCOM, 2xUSB3.2, 2x2.5" SATA, 1xmPCIe (mSATA), 24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3940
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 500
Ethernet
Controller Type
Intel i210-AT, Intel i211-AT 10/100/1000 Mbps
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), 2xDIO (terminal block), Terminal block
System Power Input
Input Voltage DC
21.6 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
110 mm
Height
155 mm
Depth
53 mm
Operating Conditions
Operating Temperature
-10..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
