MR3320S-00C
LEX COMPUTECH
SKU: 06843700

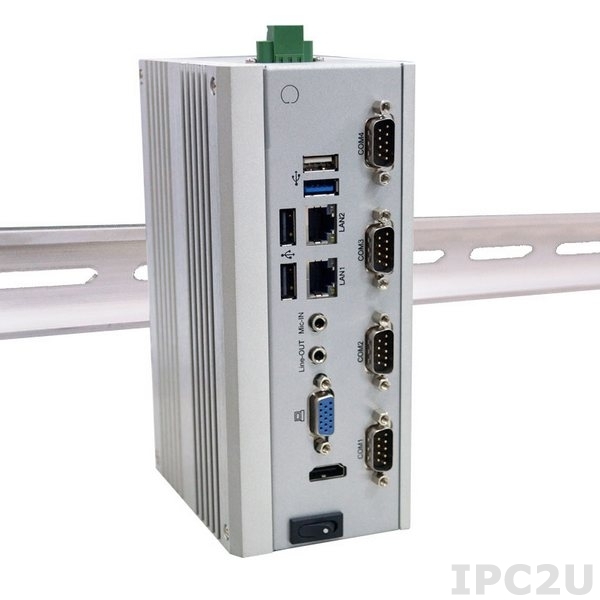

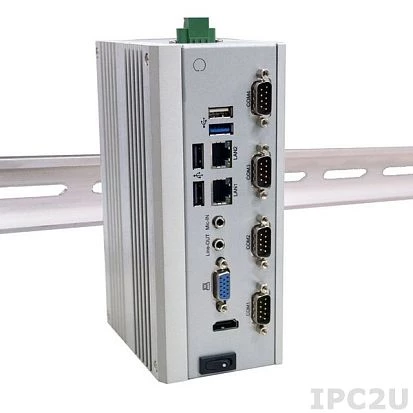

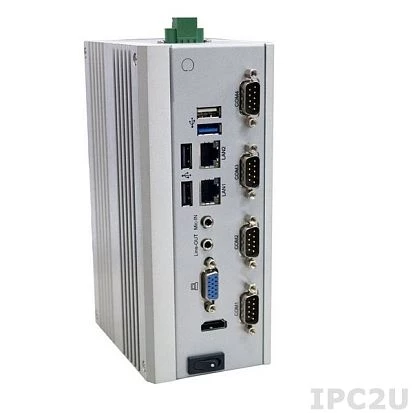

DIN-Rail Mounted Embedded Server with Intel Atom N2600 1.6GHz, 2GB RAM, VGA, 2xGB LAN, 1...5xCOM, 4xUSB, SIM Socket, 2x Mini PCI-E, 2.5" HDD, TB Power connector IN 9-36V
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration

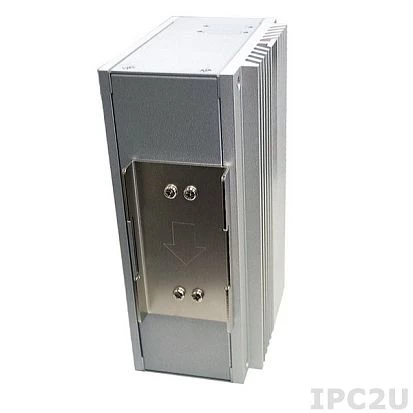

DIN-Rail mount, Embedded, Wall
Type
Fanless
CPU
Processor Installed
Intel Atom N2600
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232/422/485
1
USB Total
4
USB 2.0
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
5xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
73 mm
Height
178 mm
Depth
116 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
1.5 kg
Gross Weight
1.8 kg
