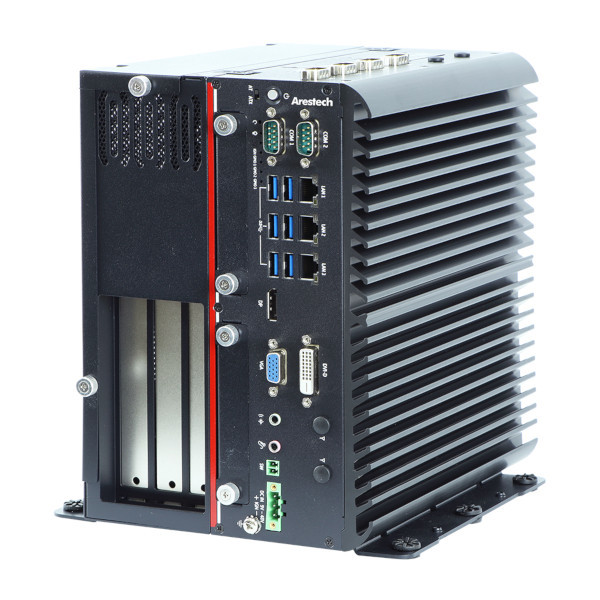

MEVA-3113P
Arestech
SKU: 57571500
High-Performance Machine Vision GPU Computer, Intel 8th/9th Gen Core i3/i5/i7 CPU, VGA, DVI-D, DP, 3xGbit LAN, 8xUSB, 6xRS232/422/485, 2xmSATA, 4x2.5" SATA Bay, 3xPCI, 9..48VDC, -40..70C operating temp
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
Memory
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i210AT 10/100/1000 Mbps, Intel i219-LM
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB 2.0
2
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
7
M.2
4
Mini-PCIe/Mini Card
2
PCI
3
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port
System Power Input
Power Consumption
38 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
168 mm
Height
241.5 mm
Depth
231 mm
Operating Conditions
Vibration
5 Grms, 5-500 Hz, 3 Axis
Shock
50 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE, CE/FCC, FCC
Dimensions
Net Weight
5.35 kg
Gross Weight
7 kg
