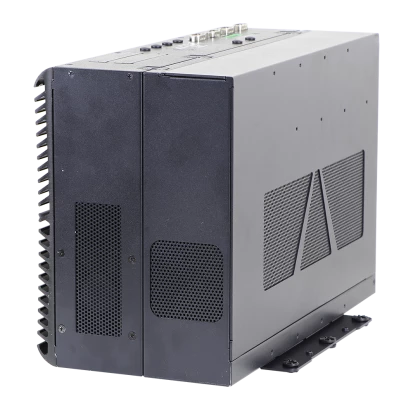

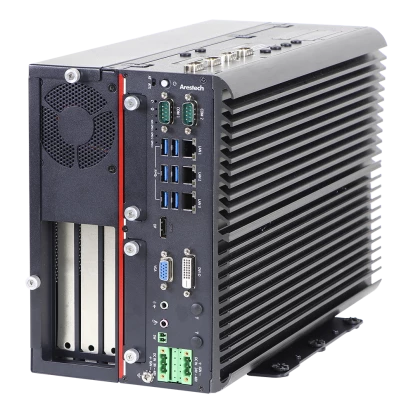

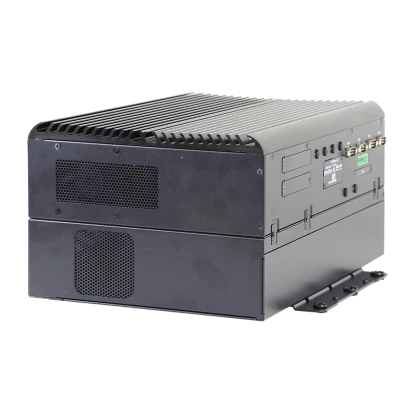

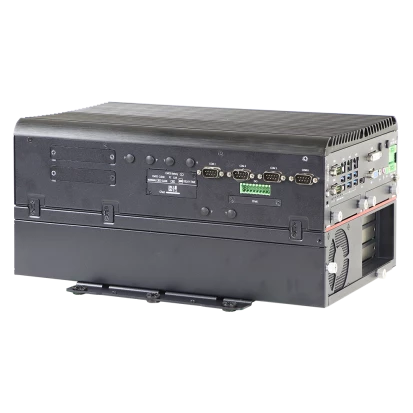

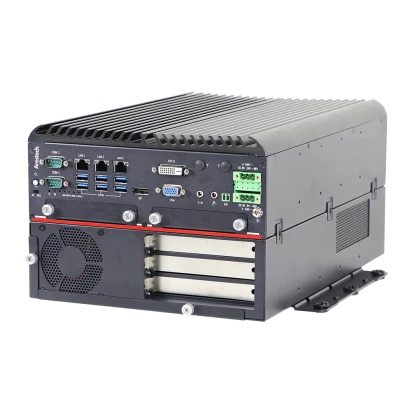

MEGA-3110-Serie

MEGA-3110-Serie

Arestech
SKU: 57200600
High-Performance GPU Computer, Intel 8th/9th Gen Core i3/i5/i7 CPU, VGA, DVI-D, DP, 3xGbE, 6xUSB 3.2, 6xRS232/422/485, 2xmSATA, 4x2.5" SATA Bay, 1xPCIex16, 1/2xPCIex8 slot (4 lane), 9..48VDC, -40..60C operating temp
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
6
USB v3.x
6
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Storage Cage
Number Of Cage External
4
2.5" Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
3
PCI Express x16
1
SIM Card slots
2
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, 3xRJ45, 6xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
9 V
Power Consumption
1008 W
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
3 Grms, 5-500 Hz, 3 Axis
Shock
30 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
9.9 kg
Gross Weight
11.3 kg

Documentation
MEGA-3110 GPU Embedded PC Datasheet User Manual v1.0 MEGA-3110 Series
