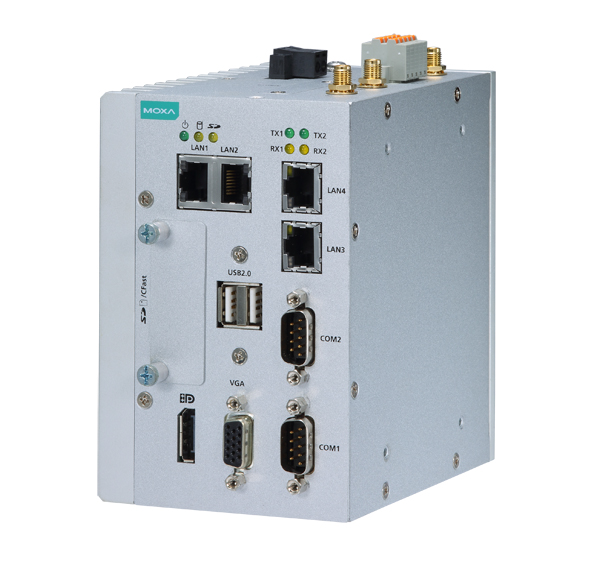

MC-1121-E4-T
MOXA
SKU: 07295700
x86 embedded computer with Intel Atom quad-core E3845 processor 1.91GHz, 4GB RAM, VGA, DP, 2xUSB, 4xGigaLAN, 2xCOM, 4xDI/4xDO, CFast socket, SD slot, 12...36VDC power, -40...+70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 4000
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Digital Input-Output
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
SD Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1, Multi-SIM
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 4xRJ45 Ethernet, 2xUSB, Display Port, DC input (terminal block), DIO (terminal block), SD card slot, CFast slot
System Power Input
Input Voltage DC
11.4 V
Power Consumption
30 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Linux OS
Dimensions and weight
Width
132 mm
Height
122 mm
Depth
68 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
1G
Shock
50g/11ms ±X, ±Y, ±Z,
Standards and Certifications
Explosion safety
UL/cUL Class I Division 2
Marine grade
DNV, IEC 60945 4th
Safety
CCC, UL 60950-1
Dimensions
Net Weight
1 kg
Gross Weight
2 kg
