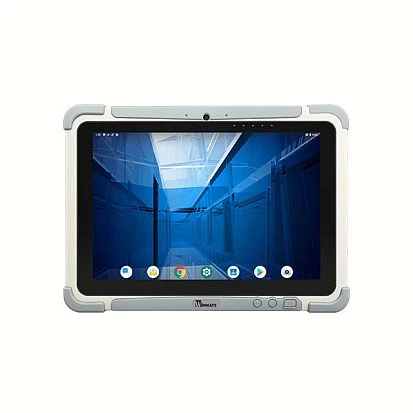

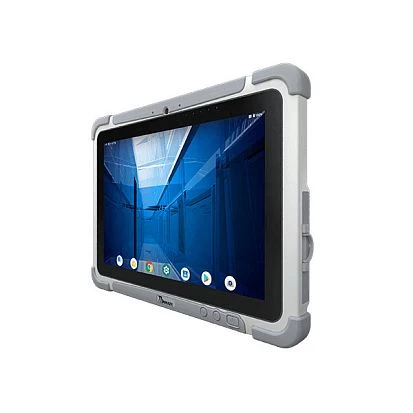

M101Q8-ME
Winmate
SKU: 57376700
10.1" Rugged Tablet PC, IP65, 1920x1080, 800cd/m2, PCAP Touch, Qualcomm Snapdragon 660 CPU, 3GB RAM, 32GB eMMC, 1xUSB 2.0, 1xUSB Type-C, MicroSD, SIM, Audio, Wi-Fi/BT/GPS, 8MP/13MP Cam., RFID, Android 9, 19VDC-in w/PSU, 5140mAh Bat., 0..35 C
Price on request
Available
Available
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1920x1200 Dots
Aspect Ratio
16:10
Brightness
800 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
3 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
SIM Card slots
Yes, 1
Additional Functions
Camera Frontside
8 MP
Rear Camera
13 MP
GPS
GPS, GLONASS
RFID Reader
Yes
Sensors
Light Sensor, Accelerometer, Gyro, E-compass
Antenna characteristics
Bluetooth
Yes
LED / Controls
LED
Battеry Status, Power LED
Connectors
Connectors
2xUSB, Audio, SIM Card Slot, SD card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5140 mA*h
RunTime Battery 1
8 h
Battery 1 Hotswap
Optional
Software
Operating System Compatibility
Android
Dimensions and weight
Width
271.9 mm
Height
197.3 mm
Depth
19.5 mm
Operating Conditions
Operating Temperature
0..35 °C
Humidity
10-90%
Vibration
MIL-STD-810G Method 514.6 Procedure I
Shock
MIL-STD-810G Method 516.6 Procedure I
Temperature (Storage)
-40~+70
Standards and Certifications
Certifications
CE, FCC, EN 60601
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810G Test Method 516.4 Drop 120 cm
Dimensions
Net Weight
1.2 kg
Gross Weight
1.8 kg
