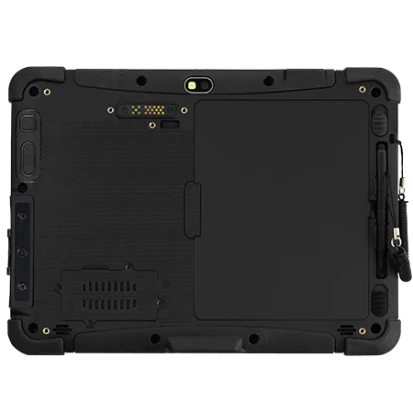

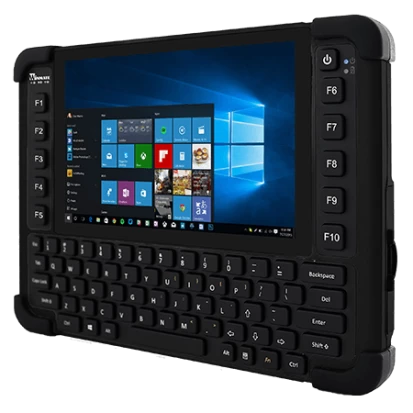

M101EKB
Winmate
SKU: 10469800
8" Rugged Tablet PC, IP65, 800cd/m2, 1280x800, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB LPDDR4 RAM, 128GB SSD, 2xUSB 3.0 Type-A + Type-C w/ PD, MicroSD, SIM, Audio, Wi-Fi/BT/GPS, TPM, Win 10 IoT, 5900mAh Bat, 19VDC-in w/ PSU, -20..60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Magnesium Alloy
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
800 Cd/m2
Contrast Ratio
1500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
Micro HDMI
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
Yes, 1
Additional Functions
GPS
GPS, GLONASS
RFID Reader
Optional
Smart Card Reader
Optional
Sensors
Light Sensor, G-sensor, Gyro
Antenna characteristics
Cellular interfaces
4G (Optional), 5G
Bluetooth
Yes
Keyboard / Pointing Devices
Type Keyboard
Waterproof, Dustproof
Layout
English
LED / Controls
LED
Battеry Status, Power LED, RFID LED
Controls
On/Off, Function Keys
Connectors
Connectors
1xUSB, Audio, SIM Card Slot, MicroSD card slot, Micro HDMI, USB type C
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
5900 mA*h
RunTime Battery 1
8 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows 11
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
271.8 mm
Height
198.2 mm
Depth
22 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Vibration
MILSTD810H Method 514.8 Procedure I
Shock
MILSTD810H Method 516.8, 4 ft
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
1.35 kg
Gross Weight
1.95 kg
