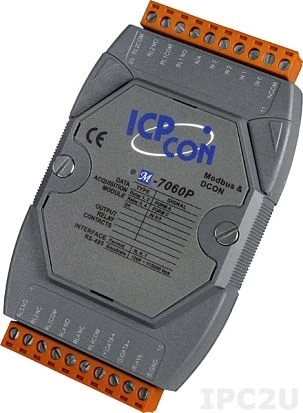

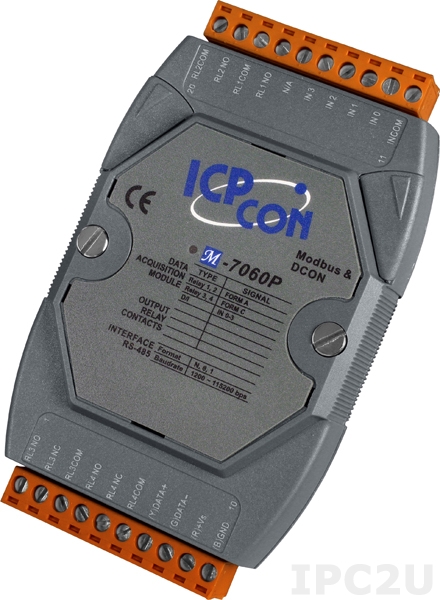

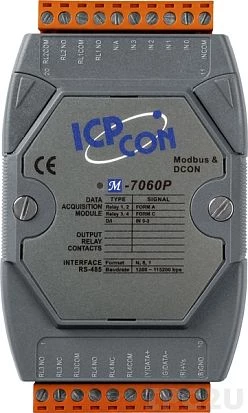

M-7060P
ICP DAS
SKU: 05907200
Isolated Digital I/O Module, Modbus, EMS Protection
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus RTU slave, DCON slave
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
10~50 V
Level of Logic "1"
0~4 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form A)
2
Contact rating of relay (Form A)
16A@250V AC, 10A@30V DC
Relay (Form C)
2
Contact rating of relay (Form C)
10A(NO)/6A(NC)@250V AC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
