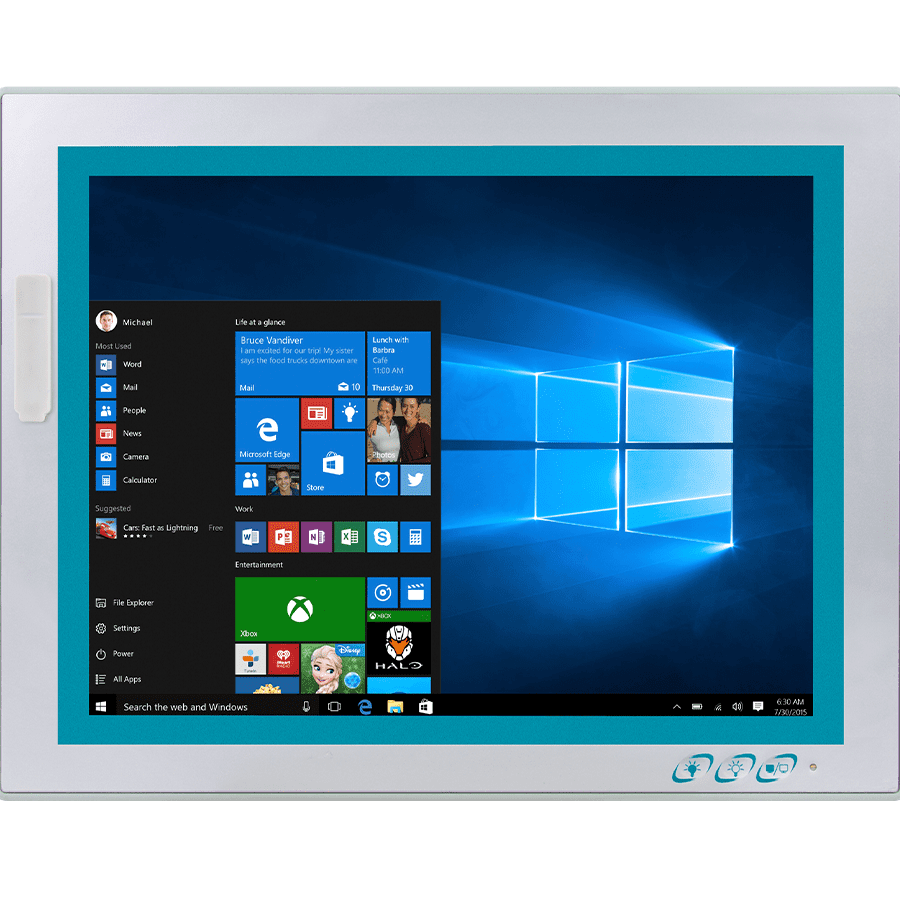

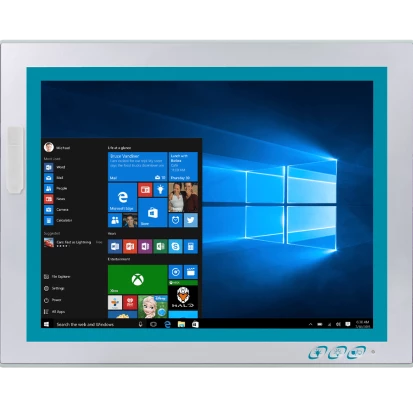

LYNC-715-7433G8
Arbor
SKU: 80059000
15" Fanless Panel PC, 1024x768, 350cd/m2, Resistive Touch, Intel Atom x7433RE CPU, 8GB (Up to 16GB) DDR5 RAM, DP, 2x2.5GbE LAN, 4xCOM, 2xUSB 3.2, 3x2.0, 1x2.5" Drive Bay, 1xM.2 Key-M (SATA), 1xM.2 Key-B, 1xM.2 Key-E, Audio Opt., 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7433RE
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/485
4
USB Total
5
USB 2.0
3
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 3052 B, 3042 B, 2242 B
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, 2xRJ45 Ethernet, 5xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
390 mm
Height
310 mm
Depth
56.1 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.5 kg
Gross Weight
5.3 kg
