Industrial Automation Systems
+886 (2) 2930 1196
Home
Catalog
Industrial Computers
Rugged Tablets
Luna 3

Luna 3

RuggON
SKU: 09977400

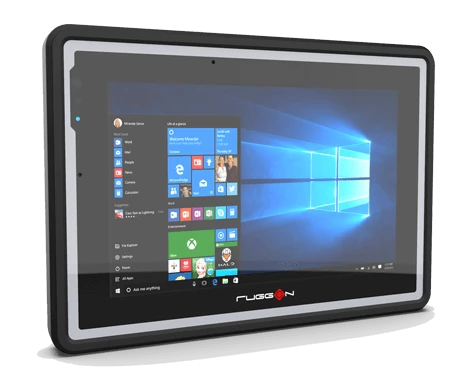

Rugged tablet 8" 1280x800, 1000 nit, Capacitive Touch, Intel Core i5-1145G7E 1.5GHz, 8GB DDR4, 128GB SSD, WiFi6, BT 5.2, 2MP/8MP camera, 2100mAh battery, Win 10 Ent
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
2, Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Antenna characteristics
Bluetooth
v5.2
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
USB type C
Power Supply
Type of Power Supply
USB adapter
Battery
Battery 1 Technology
Li-ion
Battery Capacity
2100 mA*h
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
225 mm
Height
158 mm
Depth
22 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
2, Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Antenna characteristics
Bluetooth
v5.2
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
USB type C
Power Supply
Type of Power Supply
USB adapter
Battery
Battery 1 Technology
Li-ion
Battery Capacity
2100 mA*h
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
225 mm
Height
158 mm
Depth
22 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
2, Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Antenna characteristics
Bluetooth
v5.2
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
USB type C
Power Supply
Type of Power Supply
USB adapter
Battery
Battery 1 Technology
Li-ion
Battery Capacity
2100 mA*h
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
225 mm
Height
158 mm
Depth
22 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
Construction
Construction Chassis
Rubber
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x800 Dots
Brightness
1000 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Graphic
Graphic Controller
Intel Iris Xe Graphics
Wi-Fi
Wi-Fi Standard
Intel Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Interfaces
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
SIM Card slots
2, Micro-SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
Antenna characteristics
Bluetooth
v5.2
LED / Controls
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
USB type C
Power Supply
Type of Power Supply
USB adapter
Battery
Battery 1 Technology
Li-ion
Battery Capacity
2100 mA*h
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
225 mm
Height
158 mm
Depth
22 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg

Documentation
Datasheet LUNA 3
Documentation
Datasheet LUNA 3
Documentation
Datasheet LUNA 3
Documentation
Datasheet LUNA 3
