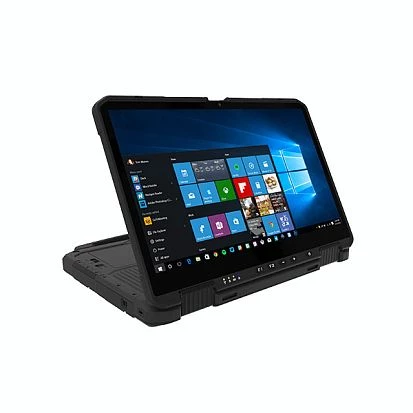

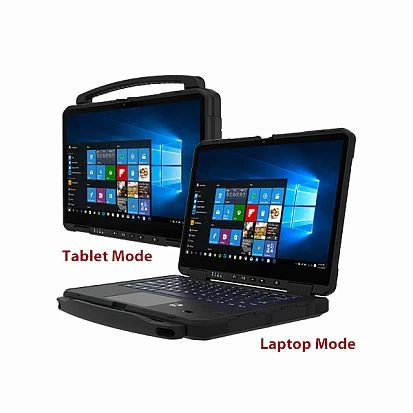

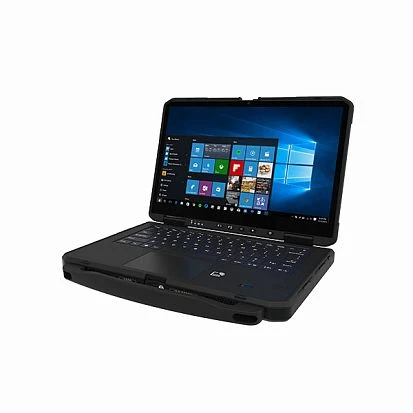

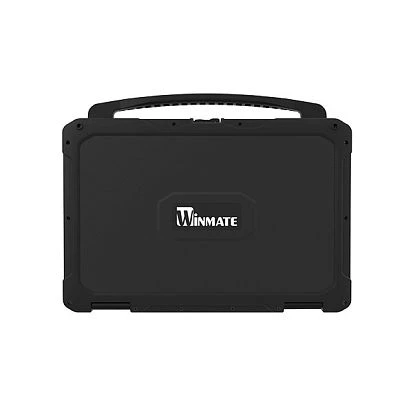

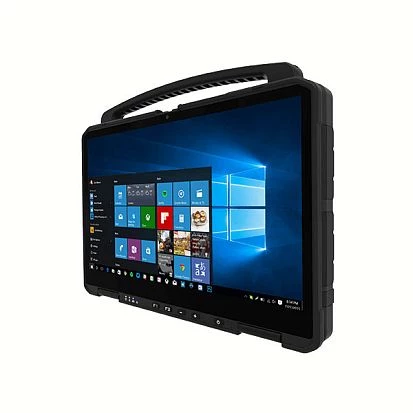

L140TG-4-Series

L140TG-4-Series

Winmate
SKU: 57377600
14" Rugged Notebook, 1920x1080 700 nits Display, Intel Core i5-1135G7 CPU, 8/16/32GB RAM, 256/512/1024/2048GB SSD, HDMI, 1xGbE, 4xUSB, 1xCOM, Front+Rear Camera, WiFi+BT, 4G, GPS, RFID, MicroSDXC, SIM, SmartCard, Audio, TPM, Windows 10 IoT, -20..60C
Price on request
Available on order
Available on order
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
Construction
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LED
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
CPU Support Type
Core i5
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
SIM Card slots
Yes, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
RFID Reader
Optional
Smart Card Reader
Optional
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
Yes
Connectors
Connectors
DB9, HDMI, 4xUSB, Audio, SIM Card Slot, MicroSD card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
2400 mA*h
RunTime Battery 1
0 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
230 mm
Height
340 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-­STD-­810H Method 514.8 Procedure I
Shock
MIL-­STD­-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.55 kg
Gross Weight
5 kg
Construction
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LED
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
CPU Support Type
Core i5
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
SIM Card slots
Yes, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
RFID Reader
Optional
Smart Card Reader
Optional
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
Yes
Connectors
Connectors
DB9, HDMI, 4xUSB, Audio, SIM Card Slot, MicroSD card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
2400 mA*h
RunTime Battery 1
0 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
230 mm
Height
340 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-­STD-­810H Method 514.8 Procedure I
Shock
MIL-­STD­-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.55 kg
Gross Weight
5 kg
Construction
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LED
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
CPU Support Type
Core i5
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
SIM Card slots
Yes, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
RFID Reader
Optional
Smart Card Reader
Optional
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
Yes
Connectors
Connectors
DB9, HDMI, 4xUSB, Audio, SIM Card Slot, MicroSD card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
2400 mA*h
RunTime Battery 1
0 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
230 mm
Height
340 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-­STD-­810H Method 514.8 Procedure I
Shock
MIL-­STD­-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.55 kg
Gross Weight
5 kg
Construction
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LED
Diagonal
14 "
Maximum resolution
1920x1080 Dots
Brightness
700 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
CPU Support Type
Core i5
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
SIM Card slots
Yes, Nano SIM
Additional Functions
Camera Frontside
2 MP
Rear Camera
8 MP
GPS
GPS
RFID Reader
Optional
Smart Card Reader
Optional
Fingerprint Scanner
Optional
Antenna characteristics
Cellular interfaces
4G
Bluetooth
Yes
Connectors
Connectors
DB9, HDMI, 4xUSB, Audio, SIM Card Slot, MicroSD card slot
Docking Station
Yes
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-pol
Battery Capacity
2400 mA*h
RunTime Battery 1
0 h
Battery 1 Hotswap
Yes
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 10
Dimensions and weight
Width
230 mm
Height
340 mm
Depth
38 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
MIL-­STD-­810H Method 514.8 Procedure I
Shock
MIL-­STD­-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration, MIL-STD-810H Test Method 516.8 Drop 3 ft
Dimensions
Net Weight
2.55 kg
Gross Weight
5 kg
Documentation
L140TG-4-Series-Datasheet
Documentation
L140TG-4-Series-Datasheet
Documentation
L140TG-4-Series-Datasheet
Documentation
L140TG-4-Series-Datasheet

Get a Quote

L140TG-4-Series
Winmate
SKU: 57377600
L140TG-4-Series
L140TG-4-Series
L140TG-4-Series
L140TG-4-Series
L140TG-4-Series

Recommended products

N14T-Laptop-M N14T-Laptop-M N14T-Laptop-M
ONERugged
N14T-Laptop-M
14" Rugged IP65 Notebook, Intel Core i5-1135G7/i7-1165G7 CPU, 1920x1080, 700 nits, 16GB DDR4, 256GB M.2 SSD, HDMI, 3xUSB 3.0, 1xUSB 2.0, 1xDB9 COM, 2xGbE LAN, Audio, SD Slot, SIM, GPS/WiFi/BT, 2.0MP Front Cam, 1750+6300mAh, w/PSU, Win 10/11 Pro/IoT
L140AD-4L L140AD-4L L140AD-4L L140AD-4L
Winmate
L140AD-4L
14" Rugged Notebook, 1920x1080, 300cd/m2, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVME SSD, HDMI, 1xGbE LAN, 3xUSB 3.0, 1xUSB Type-C, MicroSD, SIM, Audio, 2M Cam, WiFi/BT, Win 10 IoT, 2x3220mAh Bat, 19VDC-in, -20..60C
Durabook Z14I-G3 Durabook Z14I-G3 Durabook Z14I-G3 Durabook Z14I-G3
New
Durabook
Durabook Z14I-G3
Rugged Notebook 14" FHD (1920x1080), Intel Core i5-125U 3,3GHz, 16GB RAM, 256GB PCIe SSD,HDMI, VGA, WiFi 7, BT 5.4, Express Card 54, Smart Card Reader, 2M camera, 2xRJ45, 2xRS232, Backlit K/B, IP66, Without OS
L156AD
Winmate
L156AD
15.6" Rugged Notebook, 1920x1080, 800cd/m2, PCAP, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVME SSD, HDMI, 2xGbE LAN, 3xUSB 3.0, 1xUSB 3.0 Type-C, 1xCOM, Smart Card, MicroSD, SIM, WiFi/BT/GPS, Audio, Win 10 IoT, 2x3220mAh Bat, 19VDC-in, -20..60C
L140AD-4
Winmate
L140AD-4
14" Rugged Notebook, 1920x1080, 700cd/m2, PCAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVME SSD, HDMI, 1xGbE LAN, 3xUSB 3.0, 1xUSB Type-C, 1xCOM, MicroSD, SIM, Audio, 2M Cam, WiFi/BT/GPS, Win 10 IoT, 2x3220mAh Bat, 19VDC-in, -20..60C
L140AD-3 L140AD-3 L140AD-3 L140AD-3 L140AD-3
Winmate
L140AD-3
13.3" Rugged Notebook, 1920x1080, 500cd/m2, PCAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 256GB NVME SSD, HDMI, 1xGbE LAN, 3xUSB 3.0, 1xUSB Type-C, 1xCOM, MicroSD, SIM, Audio, 2M Cam, WiFi/BT/GPS, Win 10 IoT, 2x3220mAh Bat, 19VDC-in, -20..60C
L156AD-4KM2
Winmate
L156AD-4KM2
15.6" Rugged Notebook IP65, 3840x2160 400 nits Display, PCAP, Intel Core i7-12700H CPU, 16GB RAM, 256GB SSD, HDMI, 2xGbE, 3xUSB, 1xCOM, RTX A2000, Front Camera, WiFi+BT, GPS, MicroSDXC, SIM, Audio, Windows 10 IoT, -20..60C
L156AD-M1
Winmate
L156AD-M1
15.6" Rugged Notebook, 1920x1080 800 nits Display, PCAP, Intel Core i7-12700H CPU, 16GB RAM, 256GB SSD, HDMI, 2xGbE, 3xUSB, 1xCOM, Nvidia T1000 Front Camera, WiFi+BT, GPS, MicroSDXC, SIM, Audio, Windows 10 IoT, -20..60C
L156AD-4KM1
Winmate
L156AD-4KM1
15.6" Rugged Notebook IP65, 3840x2160 400 nits Display, PCAP, Intel Core i7-12700H CPU, 16GB RAM, 256GB SSD, HDMI, 2xGbE, 3xUSB, 1xCOM, Nvidia T1000 Front Camera, WiFi+BT, GPS, MicroSDXC, SIM, Audio, Windows 10 IoT, -20..60C
L140V2-4-Series
Winmate
L140V2-4-Series
14" Rugged Notebook, 1920x1080, 700 nits, PCAP, AMD Ryzen V2516 2.1GHz CPU, Up to 32GB DDR4 RAM, Up to 2TB SSD, HDMI, 1xGbE LAN, 4xUSB, 1xCOM, F+R Camera, WiFi+BT, 4G LTE, GPS, RFID, Micro SDXC, SIM, SmartCard, Audio, TPM 2.0, Win 10 IoT, -20..50C
N15T-Laptop-M N15T-Laptop-M N15T-Laptop-M
ONERugged
N15T-Laptop-M
15.6" Rugged IP65 Notebook, Intel Core i5-1135G7/i7-1165G7 CPU, 1920x1080, 700 nits, 16GB DDR4, 256GB M.2 SSD, HDMI, 3xUSB 3.0, 1xUSB 2.0, 1xDB9 COM, 2xGbE LAN, Audio, SD Slot, SIM, GPS/WiFi/BT, 2.0MP Front Cam, 1750+6300mAh, w/PSU, Win 10/11 Pro/IoT
S15-DURABOOK-Rugged-Notebook-M
Durabook
S15-DURABOOK-Rugged-Notebook-M
15" Durabook Rugged Notebook, 1920x1080 400nits, Intel Core i5-1235U 12th Gen, 8GB RAM, 256GB SSD, VGA/HDMI, 3xUSB, 1xLAN, 1xCOM, 2MP CAM, WiFi-6E+BT, SmartCard Reader, Standard or Membrane Keyboard, Windows 11
S15AB-DURABOOK-Rugged-M S15AB-DURABOOK-Rugged-M S15AB-DURABOOK-Rugged-M S15AB-DURABOOK-Rugged-M S15AB-DURABOOK-Rugged-M
Durabook
S15AB-DURABOOK-Rugged-M
15" Rugged Notebook, FHD 1920x1080 400nits, Intel Core i5-8265U, 8GB RAM, 256GB SSD, VGA/HDMI, 3xUSB, 1xLAN, 1xCOM, 2MP CAM, WiFi+BT, SmartCard Reader, Standard Keyboard, TPM, without DVD, Windows 10 Pro, Support Windows 11
Z14I-DURABOOK-Rugged-M Z14I-DURABOOK-Rugged-M
Durabook
Z14I-DURABOOK-Rugged-M
Z14i Rugged Notebook Full IP65, 14" 1920x1080 1000nits,Intel Core i5 or i7-1165G7,up to 64GB RAM,up to 2TB PCIe SSD,VGA/HDMI,3xUSB,Thunderbolt,2xLAN,2xCOM,2MP CAM,MIC,Speakers,WiFi 6+BT,ExpressCard 54,Windows 10 Pro,Keyboard with LED backlight
Durabook S15 Durabook S15 Durabook S15 Durabook S15 Durabook S15
Durabook
Durabook S15
Rugged Notebooks 15.6" FHD TFT LCD 1920x1080, 400nit, Intel Core i5-1235U, 8GB RAM, 256GB PCIe SSD, Wi-Fi 6E, BT 5,3, 2MP Front Camera, Thunderbolt 4,2x USB3.2, USB type C, VGA, HDMI, RJ-45, COM, main battery 7600mAh, AC adapter 90W
S14I-DURABOOK-Rugged-M S14I-DURABOOK-Rugged-M S14I-DURABOOK-Rugged-M S14I-DURABOOK-Rugged-M S14I-DURABOOK-Rugged-M
Durabook
S14I-DURABOOK-Rugged-M
14" Rugged IP53 Notebook, FHD 1920x1080 Display, Intel Core i5-1135G7, 8GB RAM, 256GB PCIe SSD, VGA/HDMI, 4xUSB, LAN, COM, 2MP CAM, WiFi 6+BT, SmartCard, TPM, Membrane Keyboard DE with Backlight, without DVD,Docking Connector, Windows 10 Pro
L140TG-3-Series L140TG-3-Series L140TG-3-Series L140TG-3-Series L140TG-3-Series
Winmate
L140TG-3-Series
13.3" Rugged Notebook, 1920x1080 500 nits Display, Intel Core i5-1135G7 CPU, 8/16/32GB RAM, 256/512/1024/2048GB SSD, HDMI, 1xGbE, 4xUSB, 1xCOM, Front+Rear Camera, WiFi+BT, 4G, GPS, RFID, MicroSDXC, SIM, SmartCard, Audio, TPM, Windows 10 IoT, -20..60C
L140V2-3-Series
Winmate
L140V2-3-Series
13.3" Rugged Notebook, 1920x1080, 500 nits, PCAP, AMD Ryzen V2516 2.1GHz CPU, Up to 32GB DDR4 RAM, Up to 2TB SSD, HDMI, 1xGbE LAN, 4xUSB, 1xCOM, F+R Camera, WiFi+BT, 4G LTE, GPS, RFID, Micro SDXC, SIM, SmartCard, Audio, TPM 2.0, Win 10 IoT, -20..50C
