JetBox 5633Gf-w

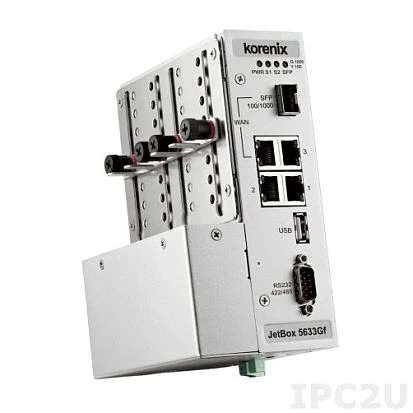

JetBox 5633Gf-w

KORENIX
SKU: 55857000
Korenix Industrial VPN Router Computer, Embedded Linux 3.2, ARM Cortex-A8 720MHz, 4xRJ45, 1xSFP/RJ45 combo, 3xUSB, 1xRS232/422/485, 9..+36V DC-In
End-of-life product

Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
CPU
Processor Installed
ARM Cortex A8 TI 3352M
Memory
Default on Board Memory
0.5 GB
Ethernet
10/100/1000 Mbit/s
4
Interfaces
RS-232/422/485
1
USB 2.0
3
System Power Input
Power Consumption
18 W
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
80 mm
Height
160 mm
Depth
118 mm
Standards and Certifications
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
0.5 kg
Gross Weight
0.7 kg

Documentation
JetBox_5633Gf-w Datasheet.pdf
