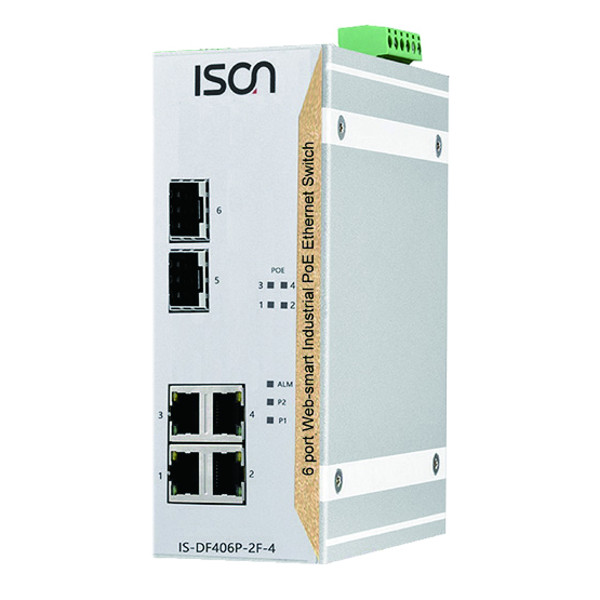

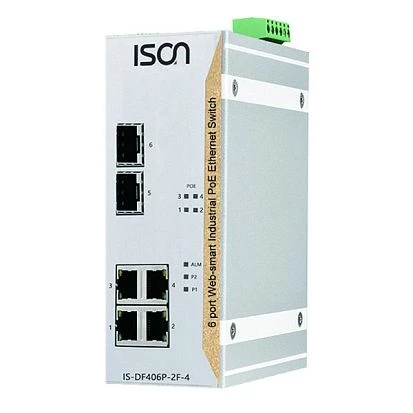

IS-DF406P-2F-4
ISON
SKU: 80296800
Industrial Fast Managed Switch, IP30, 4x10/100Base-T with PoE+, 2x100Base-FX SFP, 12..58 VDC, Operating Temperature -10..60 C
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
SFP Fast Ethernet 100 Mbit/s
2
PoE/PoE+ 10/100 Mbit/s
4
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
LLDP, Syslog, Telnet, UDP, QoS, TFTP, LACP, ARP, TCP, RARP, SNMPv1/v2c, ICMP
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, SSH
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..58 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
138 mm
Depth
58 mm
Height
117.95 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
