IPC974-519-C236-DC-FL-4PCIe

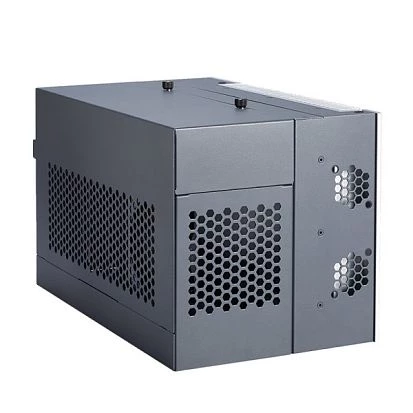

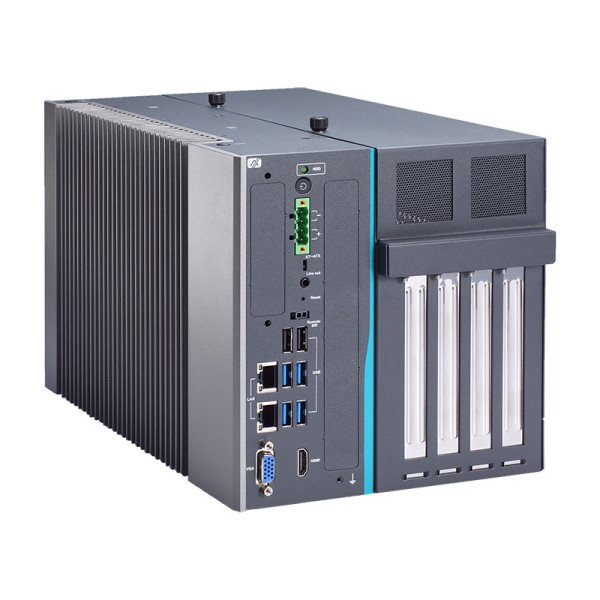

IPC974-519-C236-DC-FL-4PCIe

AXIOMTEK
SKU: 08538800
4-slot fanless embedded system with 7th/6th Gen Intel Core i7/i5/i3/Xeon E3 v5/Celeron CPU, DDR4 ECC, Intel C236 PCH, VGA, HDMI, 2xGbE LAN, 2xUSB 3.0, 4xUSB 2.0, Audio, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Xeon
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
USB Total
6
USB 2.0
2
USB v3.x
4
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
PCI Express x16
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
19 V
Dimensions and weight
Width
188.1 mm
Height
317 mm
Depth
192 mm
Operating Conditions
Operating Temperature
-10..70 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5.9 kg
Gross Weight
7.3 kg

Documentation
datasheet_IPC974-519
