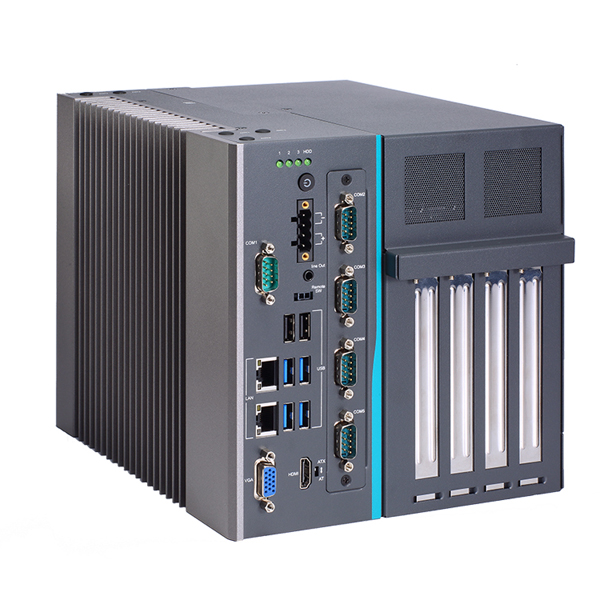

IPC964-525-N-DC-Q370/AX96410

IPC964-525-N-DC-Q370/AX96410

AXIOMTEK
SKU: 09212600
4-slot fanless embedded system with 9th/8th Gen Intel Core i7/i5/i3/Celeron, DDR4, Intel Q370 PCH, VGA, HDMI, 2xGbE LAN, 4xUSB3.1, 3xUSB2.0, USB int, 1xRS232 (default), 1xPCIex16, 3xPCIex4, mPCIe, SIM, Line-out, 24VDC-in, w/o Axiomtek logo, -10 +60C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
7
USB 2.0
3
USB v3.x
4
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, DC Input, 4xDB9 Male
System Power Input
Input Voltage DC
19 V
Dimensions and weight
Width
188.1 mm
Height
317 mm
Depth
192 mm
Operating Conditions
Operating Temperature
-10..70 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5.9 kg
Gross Weight
7.3 kg

Documentation
DS_IPC964-525
