IPC962-512-DC-FL-4C2PCIe

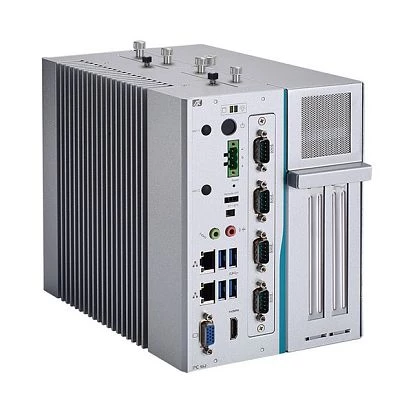

IPC962-512-DC-FL-4C2PCIe

AXIOMTEK
SKU: 08412500
2-slot fanless embedded system with Intel Core i7/ i5/ i3 Processor 6th/7th gen, Intel Q170, DDR4, HDMI, VGA, 4xCOM module AX93511, 4xUSB 3.0, 1 x full-size PCI Express Mini, 1xPCIe x16, 1xPCIe x4 AX96205, 24VDC
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB v3.x
4
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
PCI Express x16
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out
System Power Input
Input Voltage DC
19 V
Power Supply
Type of Power Supply
Direct current
Dimensions and weight
Width
147.5 mm
Height
192 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.4 kg
Gross Weight
5.4 kg
