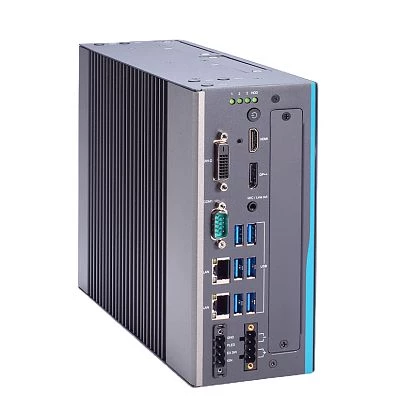

IPC960A-Q-F5

IPC960A-Q-F5

AXIOMTEK
SKU: 11033000
Fanless embedded system with LGA1700 Intel Core i7/ i5/ i3 Processor 12th gen, Intel Q670E, DDR5, DP++, HDMI, DVI-D, 1x2.5GbE LAN, 1xGbE LAN, 1xCOM, 6xUSB 3.2, 1xUSB 2.0, 2x2.5" HDD, M.2 Key M 2280, 18-36VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Memory
Form-factor
DDR5
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
7
USB 2.0
1
USB v3.x
6
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Internal Ports
USB 2.0
Connectors
DB9, DVI-D, HDMI, 2xRJ45, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
18 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
83.5 mm
Height
192 mm
Depth
260 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Standards and Certifications
Certifications
CE/FCC, EN61000-6-2, EN61000-6-4
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.2 kg
Gross Weight
5.2 kg
