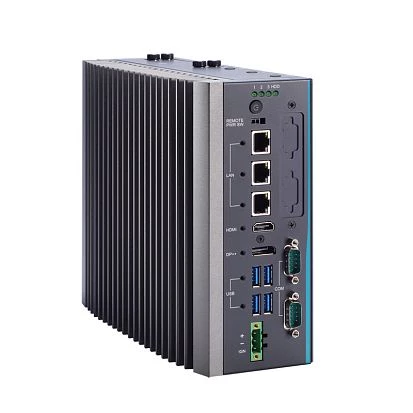

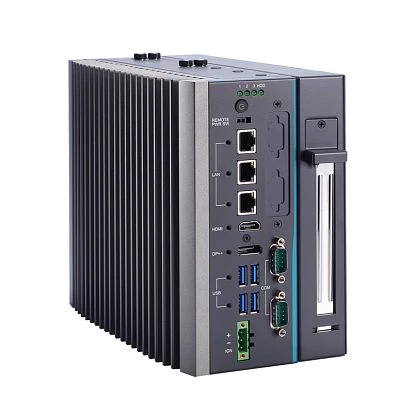

IPC920-H-F1

IPC920-H-F1

AXIOMTEK
SKU: 11037600
2-slot fanless embedded system with 13th/12th gen Intel Core, Intel H610E, DDR5, DP++, HDMI, 2x2.5GbE LAN, 1xGbE LAN, 2xCOM, 4xUSB 3.2, 1xUSB 2.0, 2x2.5" SATA, M.2 2280, 2230, MiniPCIe/SIM, 18-36VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR5
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
1
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Internal Ports
USB 2.0
Connectors
2xDB9, HDMI, 3xRJ45, 4xUSB, Display Port
System Power Input
Input Voltage DC
18 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Dimensions and weight
Width
83.5 mm
Height
192 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
3.2 kg
