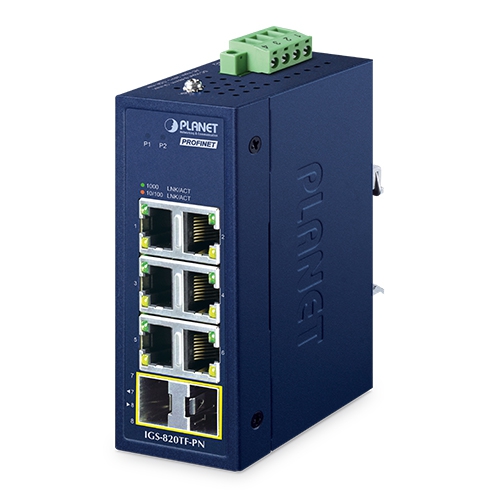

IGS-820TF-PN
Planet
SKU: 80140000
Compact Industrial PROFINET Ethernet Switch, IP30, 6x10/100/1000Base-T RJ45, 2x1000Base-X SFP, 9..48VDC, -40..75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100/1000 Mbit/s
6
SFP 100/1000 Mbit Ports
2
Switch Properties
Jumbo Frame Size
9 kB
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..48 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
41 mm
Depth
70 mm
Height
115 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-90%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.35 kg
Gross Weight
1 kg
