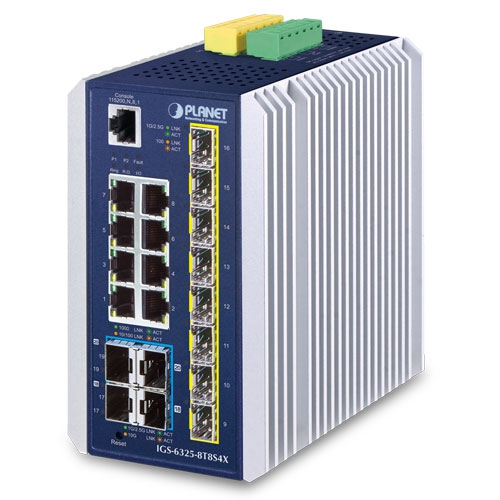

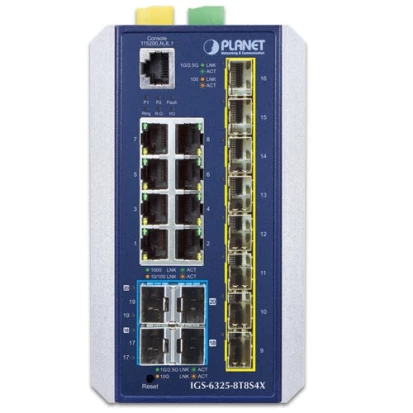

IGS-6325-8T8S4X
Planet
SKU: 57087900
Industrial L3 Managed Ethernet Switch, IP30, 8x10/100/1000Base-T, 8x100/1000/2500Base-X SFP, 4x10GBASE-SR/LR SFP+, SDRAM 512Mb, 2xDI, 2xDO, 12..48 VDC, Operating Temp. -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 2.5 Gbit/s Ports
8
10 Gbit/s SFP+ Ports
4
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
Static Routing, OSPF
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, NTP, GVRP, LACP, IEEE 1588 PTP V2 (hardware-based), IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
MSTP, STP, RSTP
Security Protocols
SSH2
IEEE Standard
ieee_802.3ae, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3ah OAM for Link-Fault Management

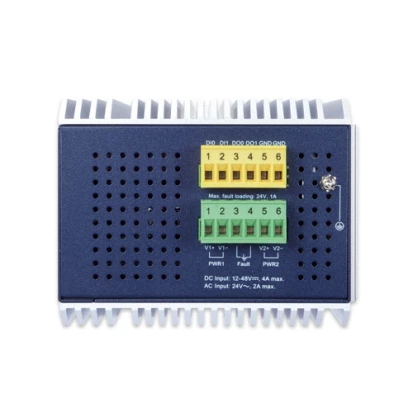

System Power Input
Input Voltage DC
12..48 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
86 mm
Depth
107.3 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15B Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.3 kg
Gross Weight
1.8 kg
