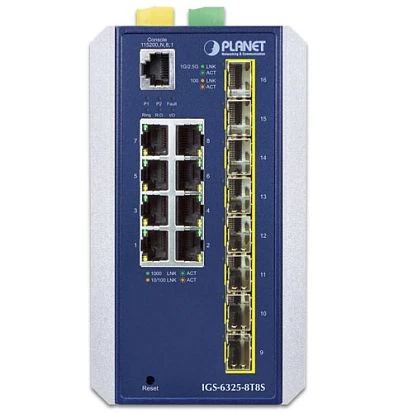

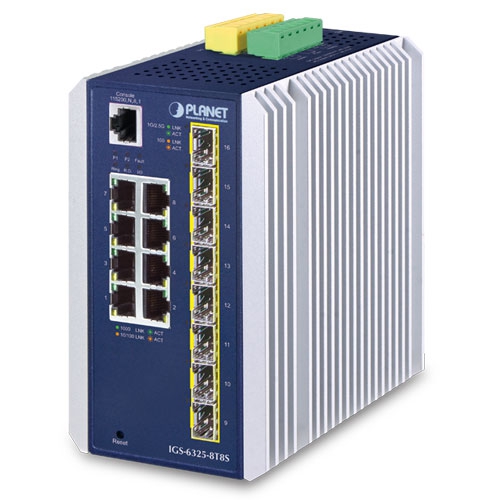

IGS-6325-8T8S
Planet
SKU: 57289300
Industrial DIN-Rail L3 Managed Ethernet Switch, 8-Port 10/100/1000T, 8-port 1G/2.5G SFP, DI/DO, ERPS Ring, 1588 PTP TC, Modbus TCP, Cybersecurity features, Dual 12-48VDC, -40..75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 2.5 Gbit Ports
8
Switch Properties
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
OSPF
Managment Protocols
SNMPv1/v2c/v3, LLDP, Syslog, Telnet, NTP, GVRP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3ah OAM for Link-Fault Management

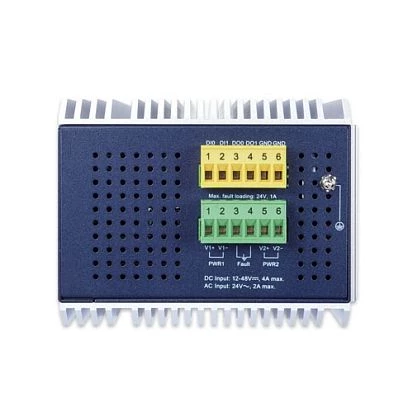

Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
12..48 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
86 mm
Depth
107.3 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.07 kg
Gross Weight
1.6 kg
